OPNexus manages rules, NAT, VPN, certificates and updates across your OPNsense firewalls from one place – and pushes them out over the API with preview, confirmation and automatic rollback. On desktop, tablet and phone.
OPNexus is built for small screens from the ground up: check an incident from the sofa, prepare an update on the train. Every view works from 375 pixels wide.

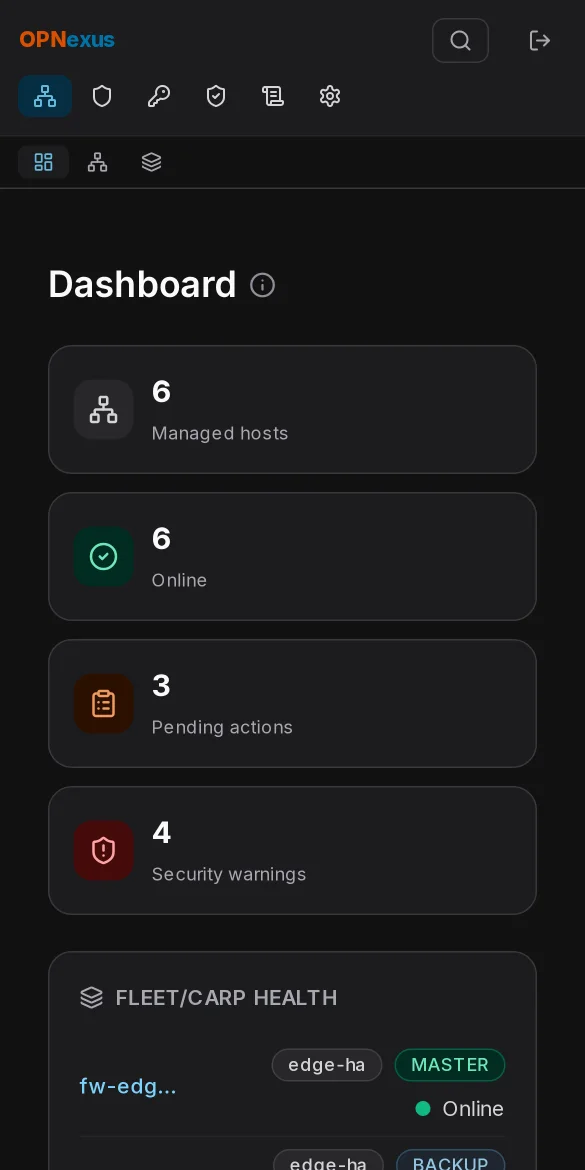

Dashboard
Rules
Cluster
Update Center
Big touch targets
Buttons and menus are made for thumbs – no tiny links in dense tables.
Compact navigation
Main areas as an icon bar, sub-pages beneath. The quick search (Ctrl/⌘+K) jumps anywhere.
Light and dark
The colour scheme follows your system or your choice – readable in a dark server room, too.
Accessible
Automatically checked with axe-core on all 18 pages (WCAG 2.2 AA), fully keyboard operable.
Light or dark
Both colour schemes, the same clarity
Drag the handle: dark design on the left, light on the right. This site follows your system, too.
DarkLight
Everything at a glance
The complete feature set
More than a rule editor: OPNexus covers the day-to-day running of a firewall fleet.
Fleet & high availability
Central host list
Live status, CARP role, cluster and policy membership; “Open in OPNsense” in one click.

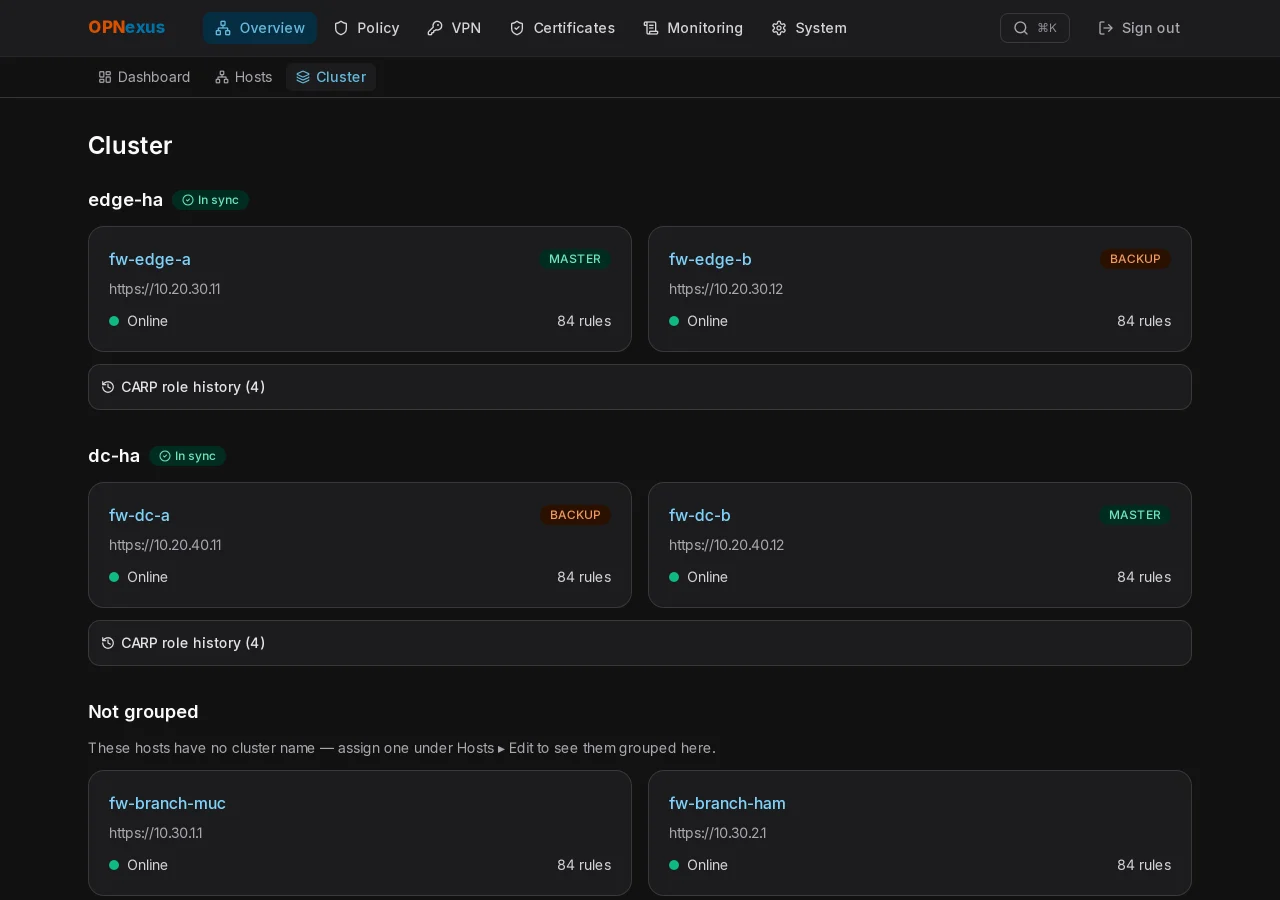

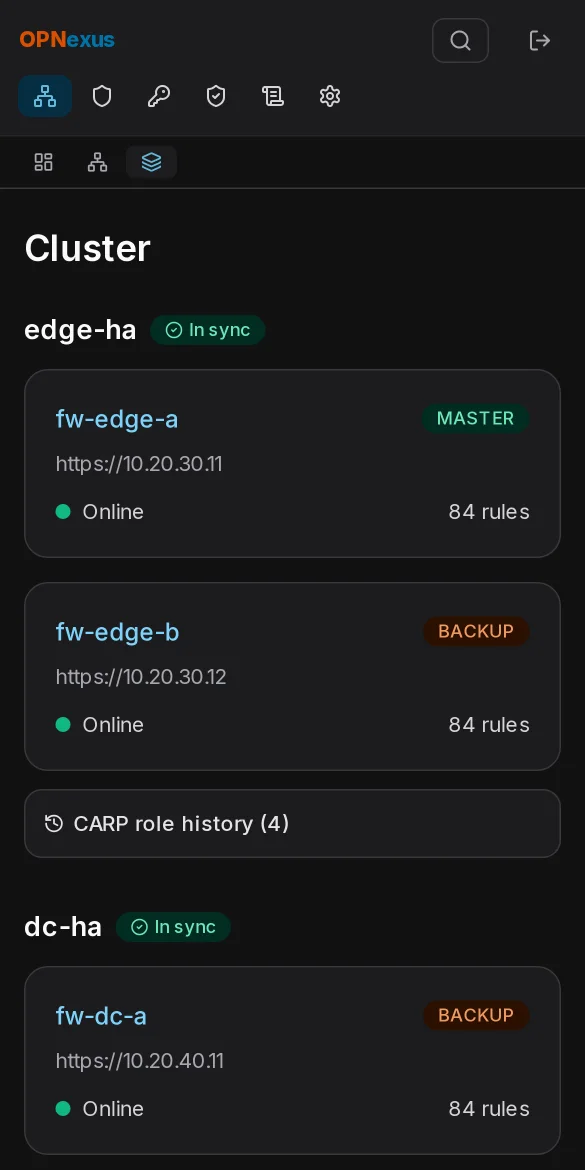

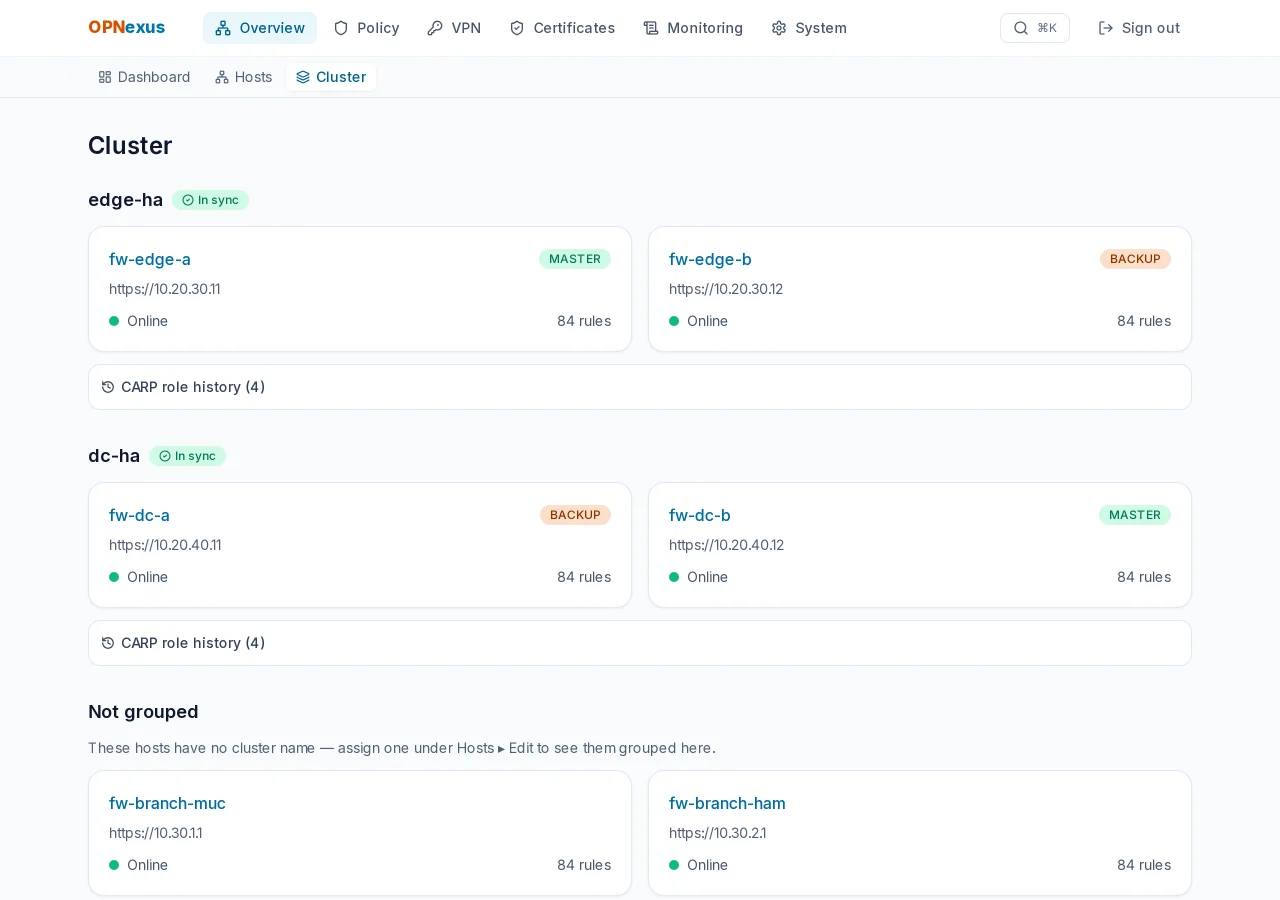

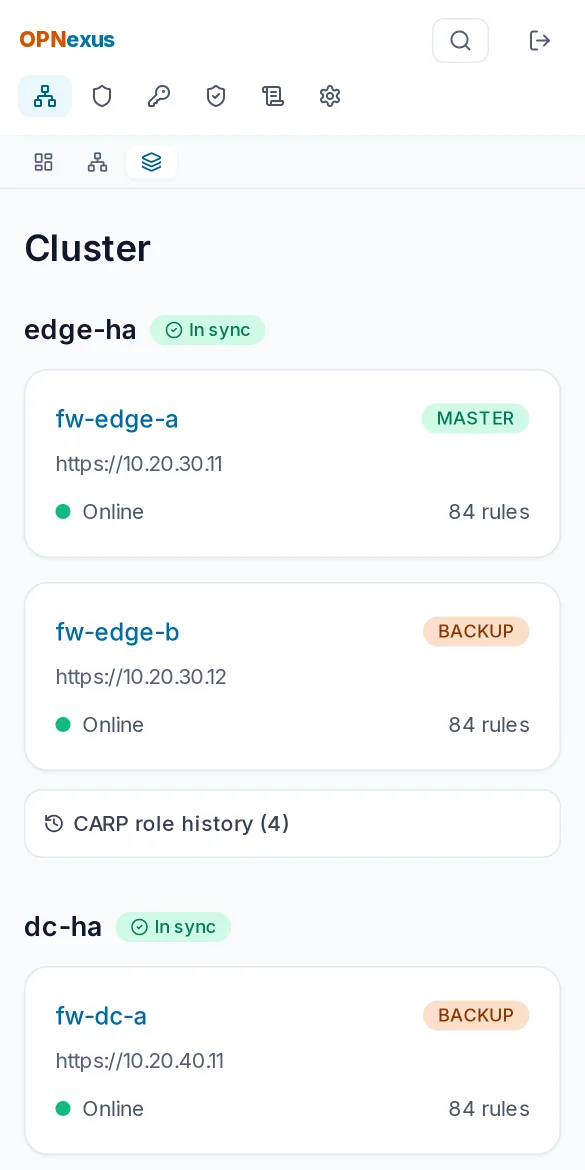

Cluster view
HA pairs are grouped automatically by cluster name; MASTER and BACKUP side by side.
CARP event history
Every role change is recorded; alert on split-brain or a missing MASTER.
CARP maintenance mode
Optionally with an auto-revert timer (15, 30, 60 minutes or permanent).

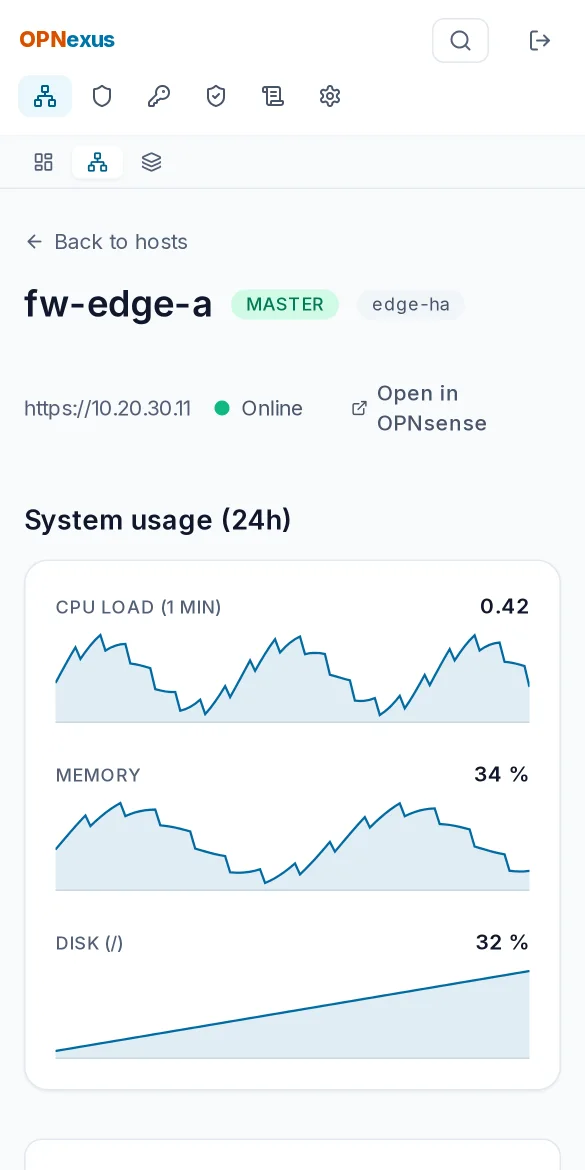

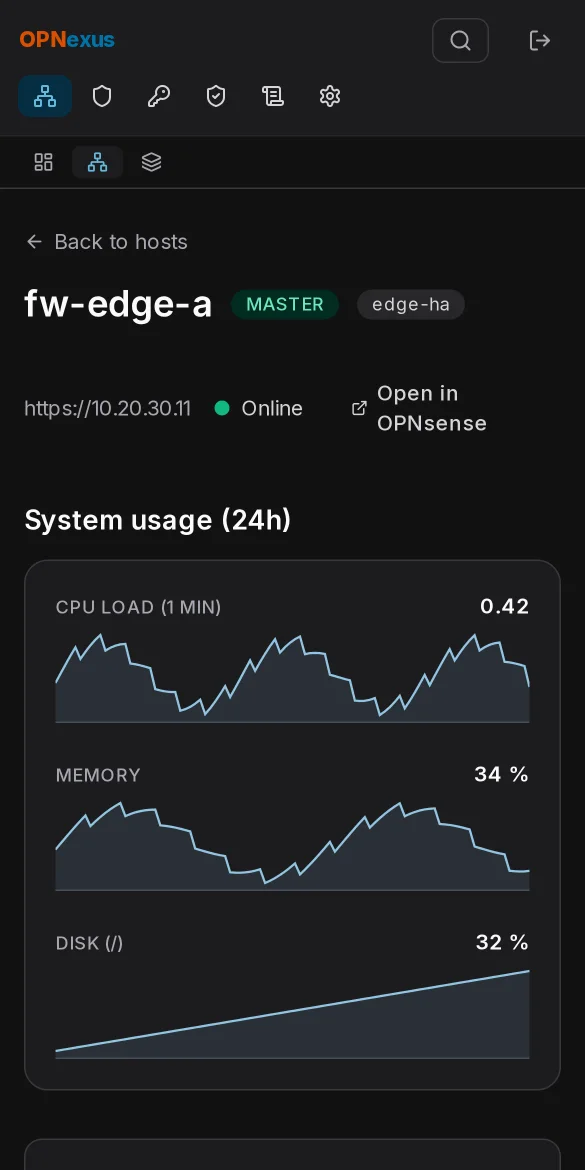

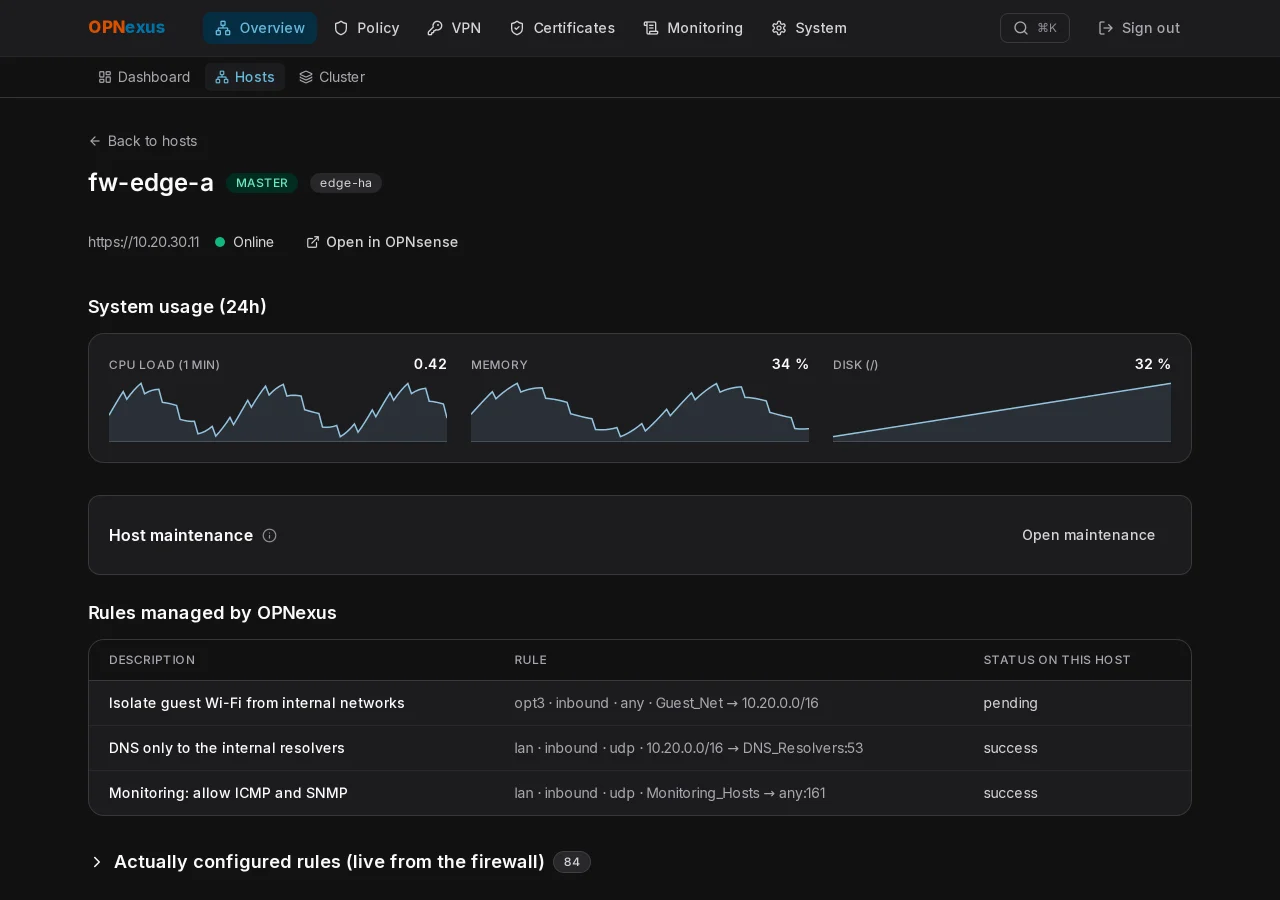

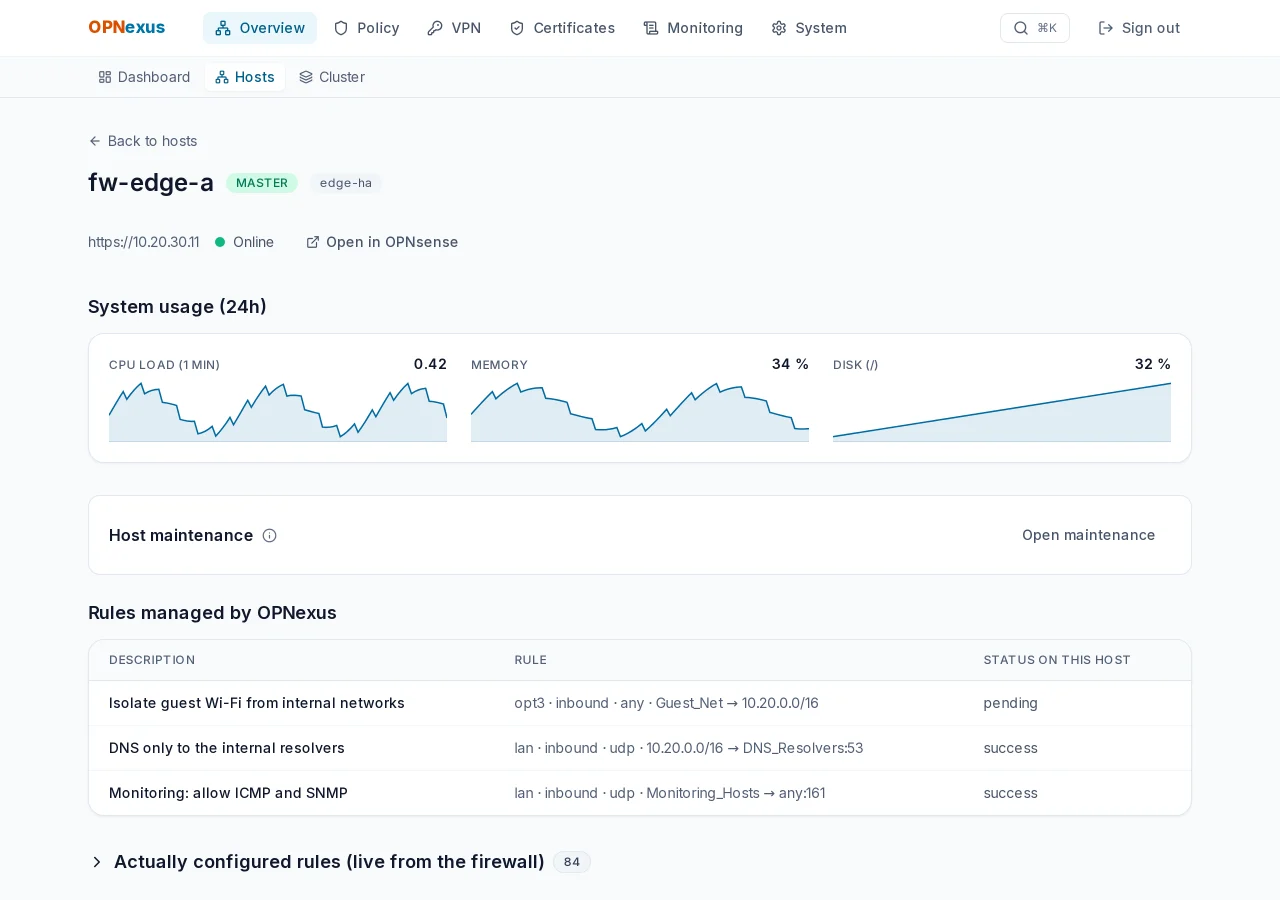

Resource history
CPU load, memory and disk for the last 24 hours per host.
Service control
List a firewall’s services and start, stop or restart them.

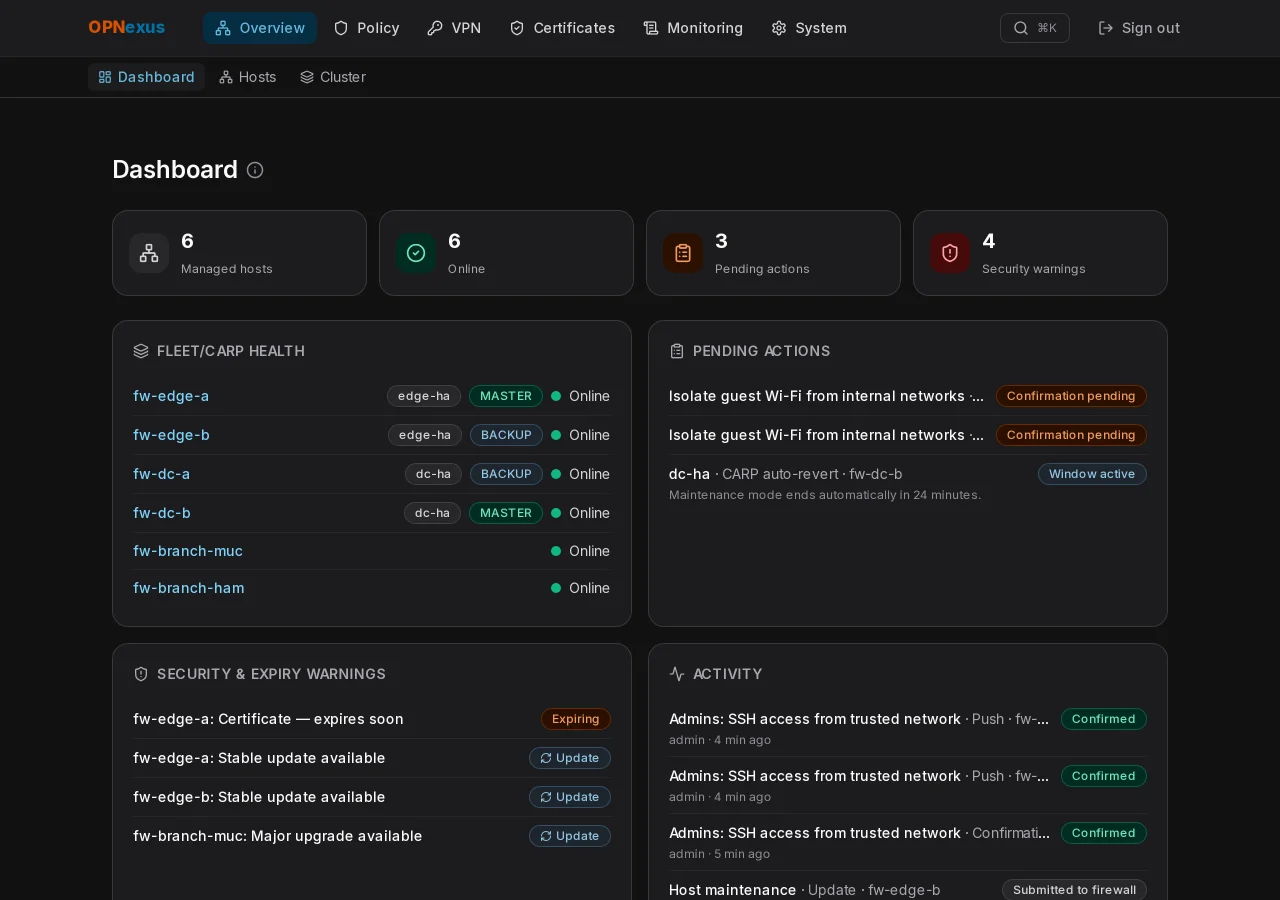

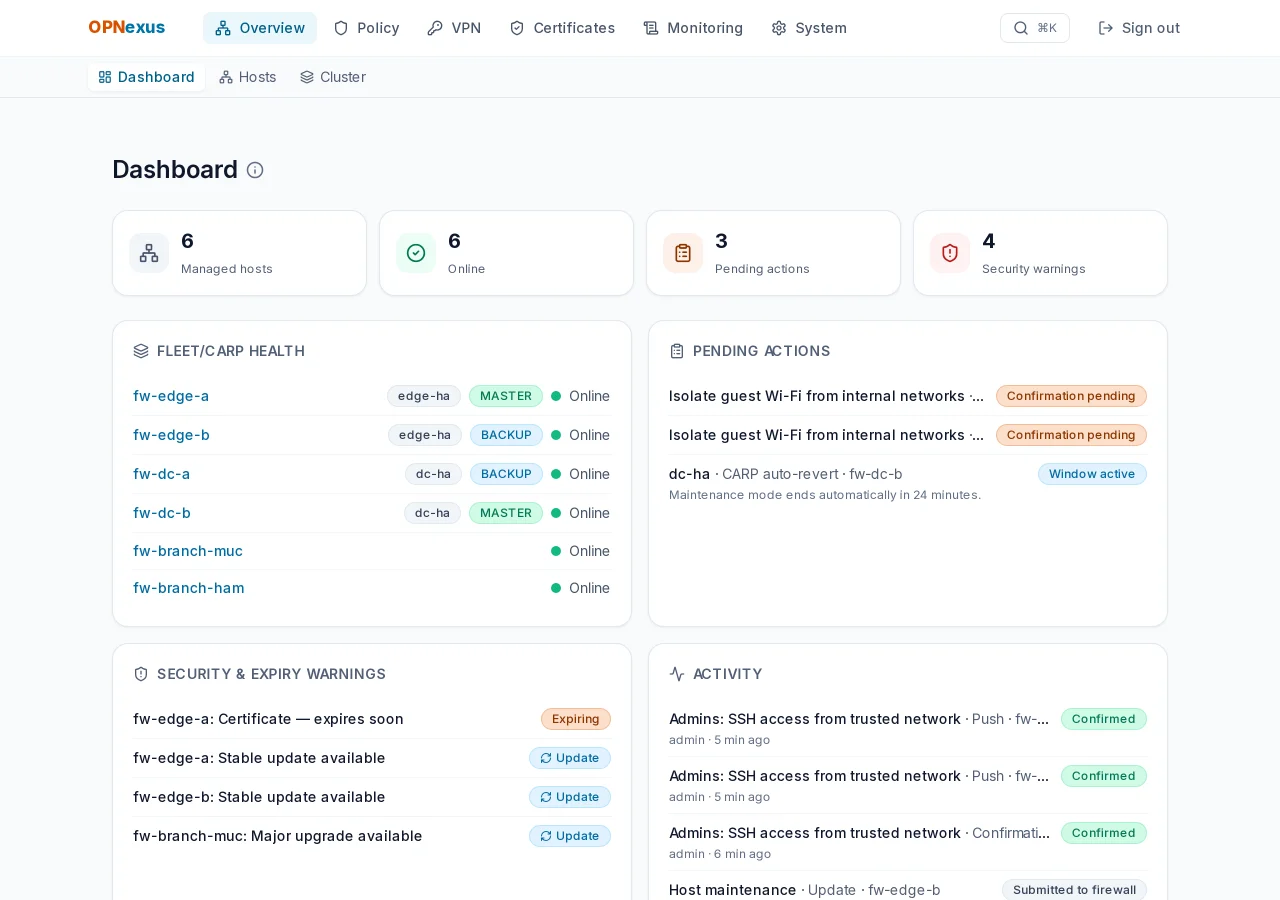

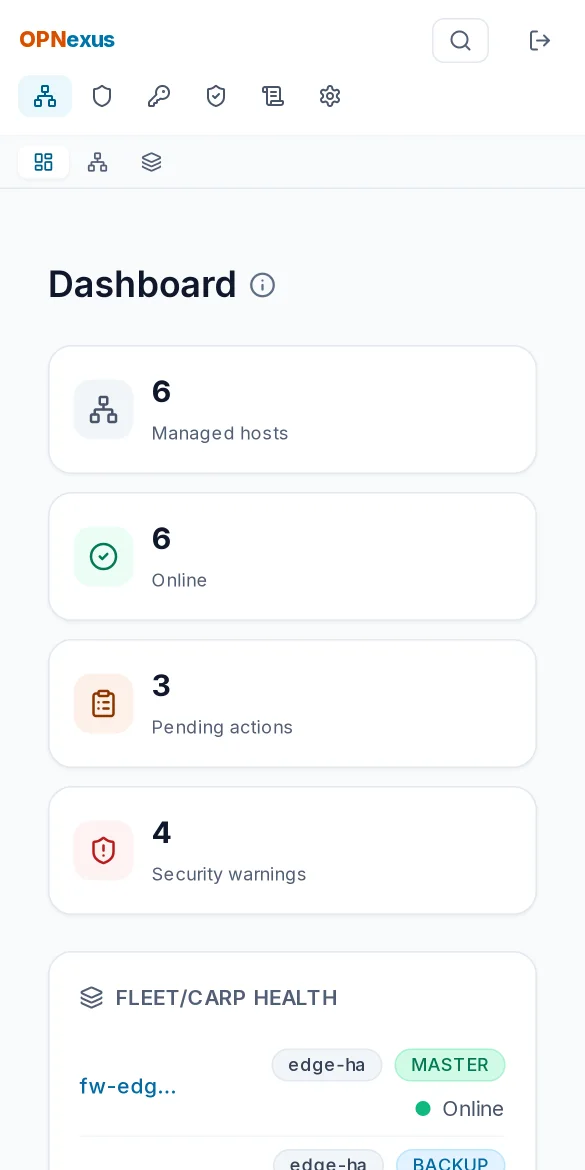

Dashboard
Pending actions, fleet health, security and expiry warnings, and an activity feed.
Rulebase

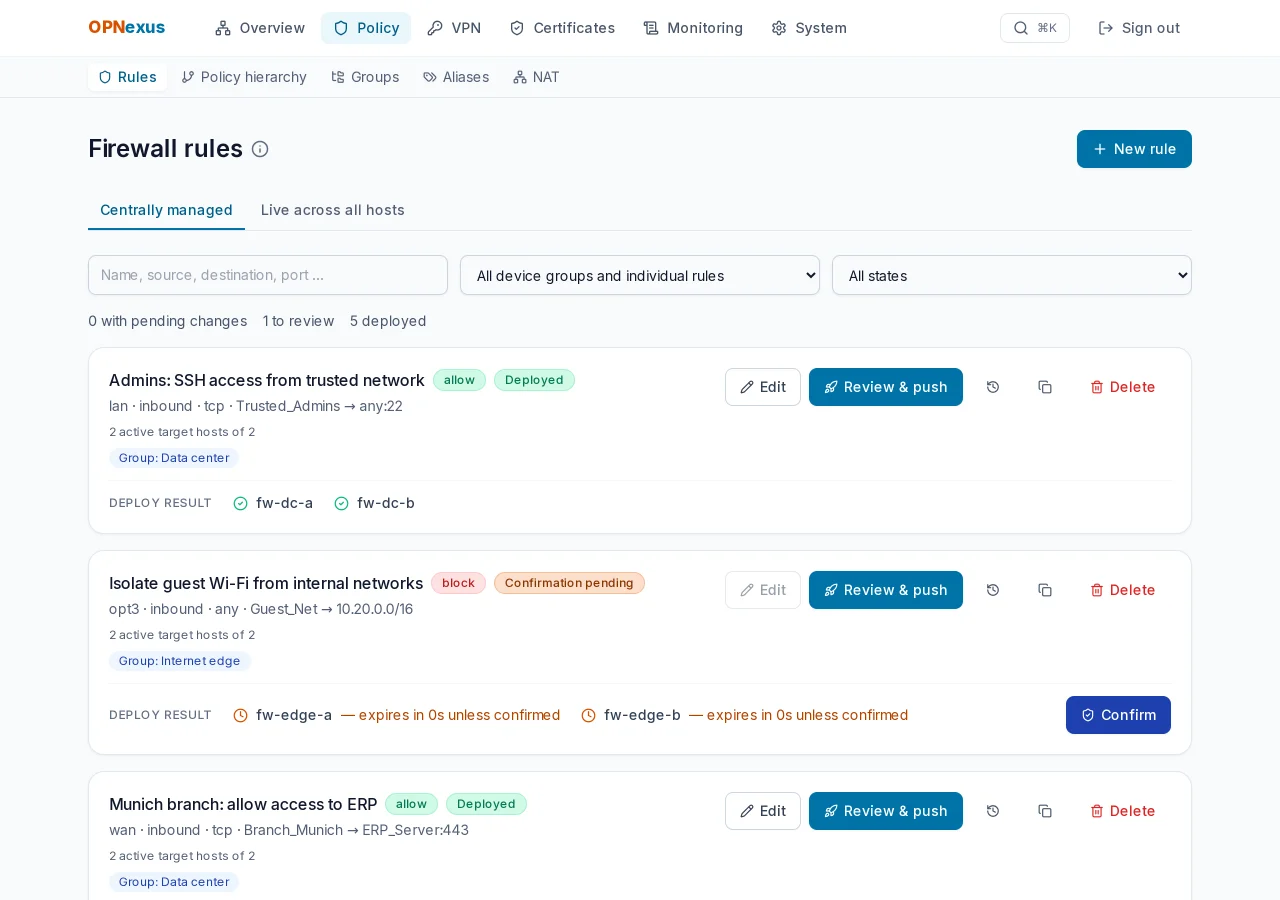

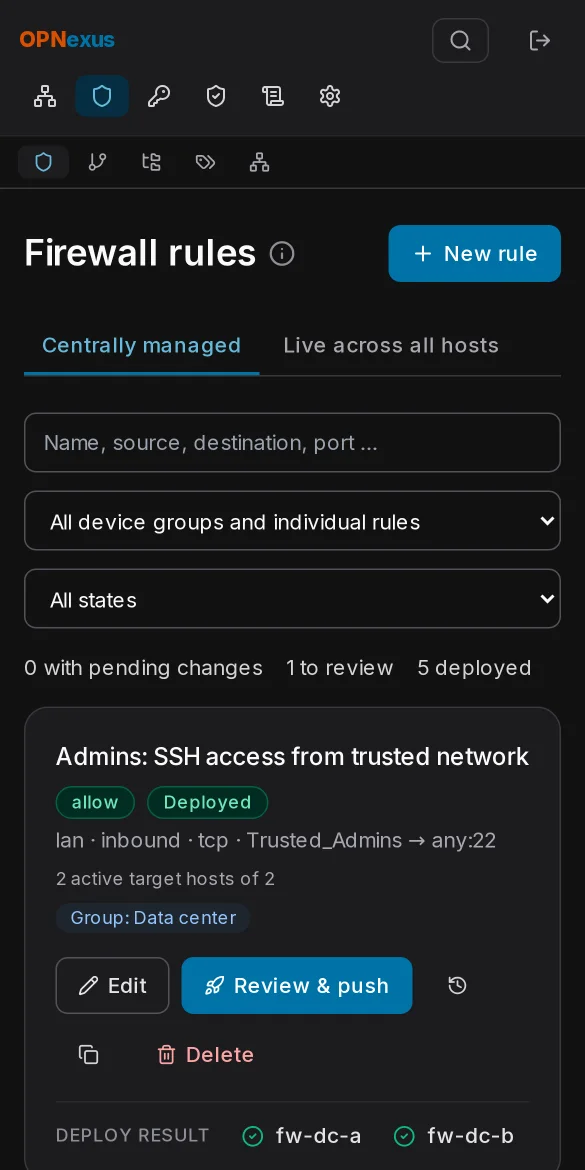

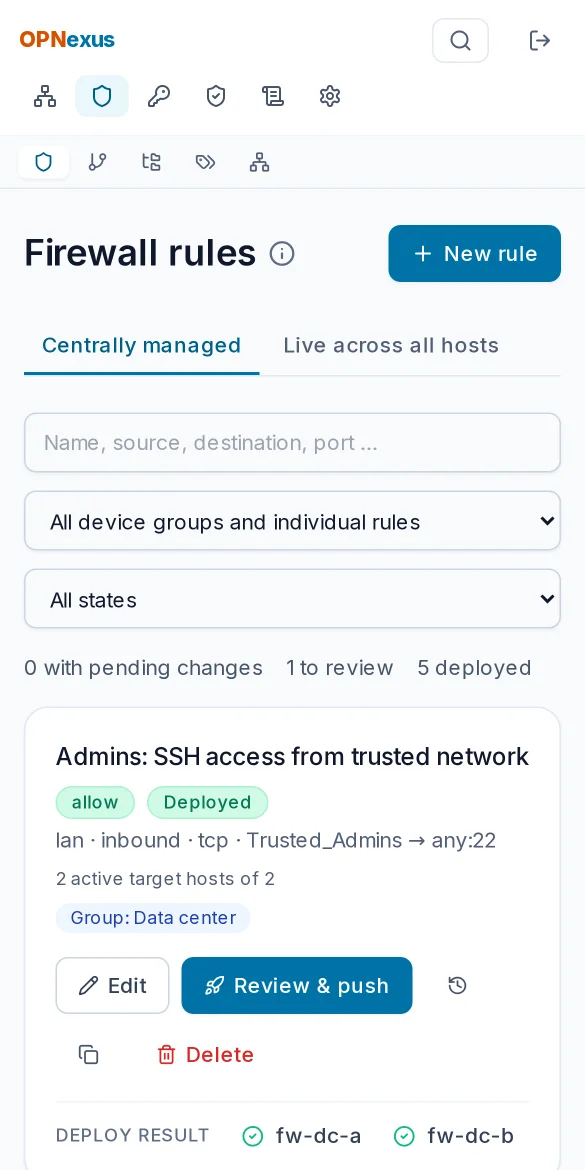

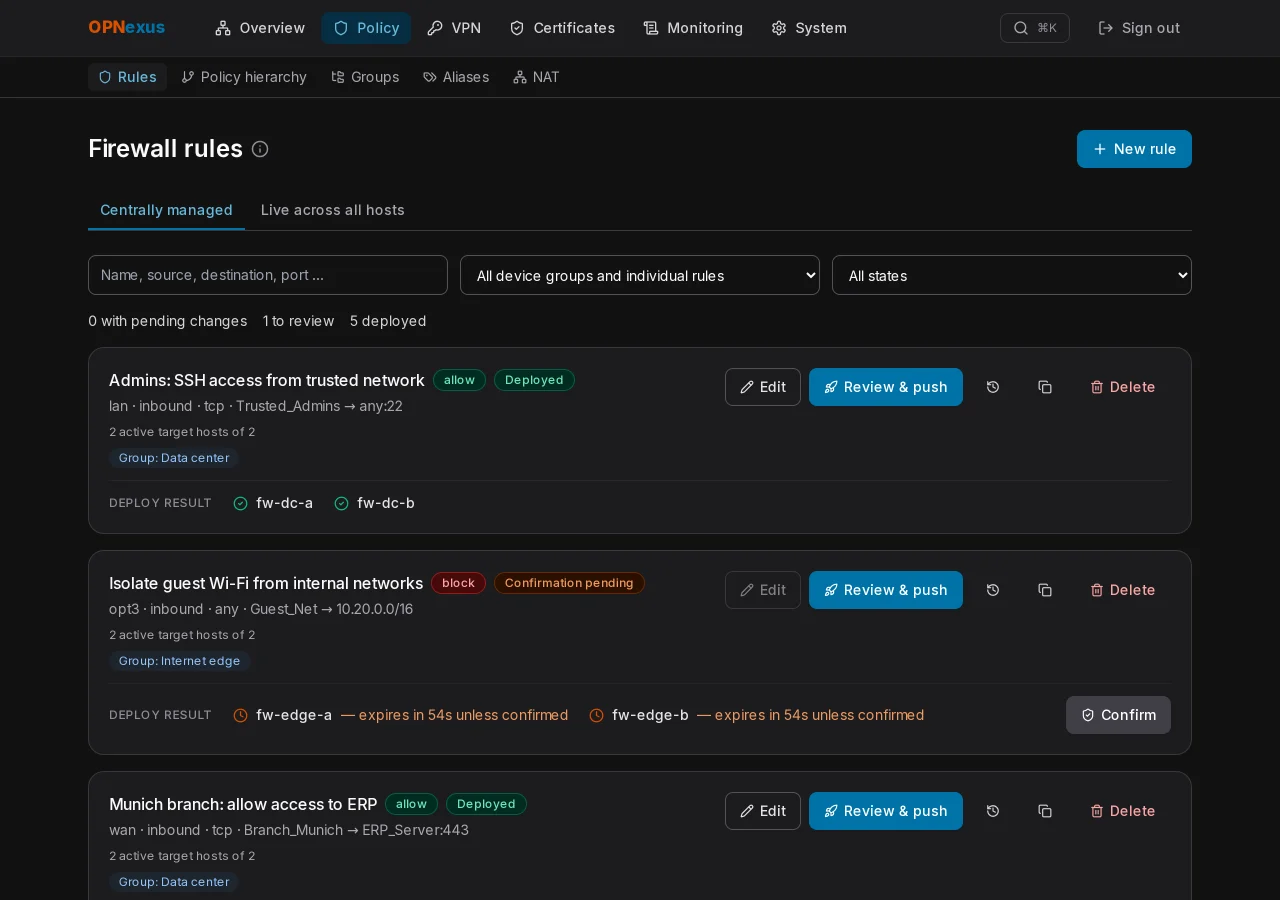

Central firewall rules
Maintain once, deploy to chosen hosts or device groups.

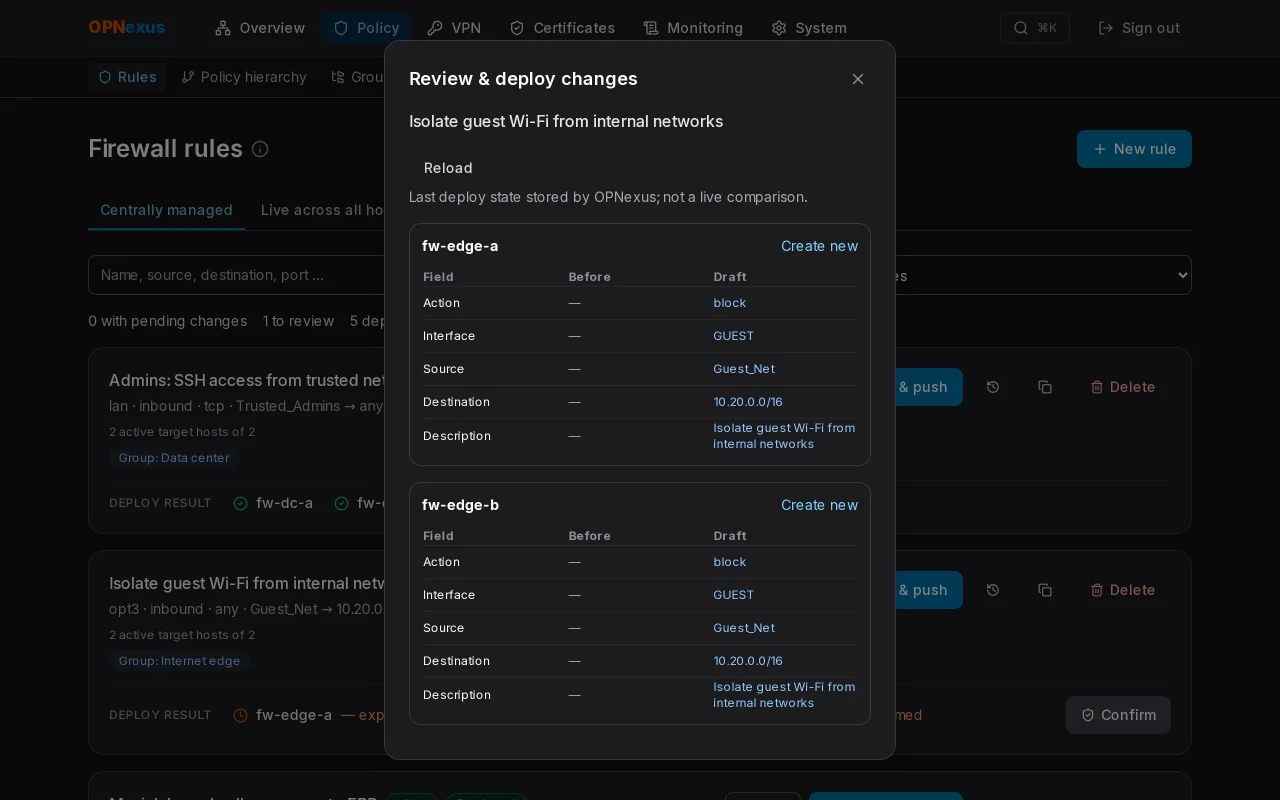

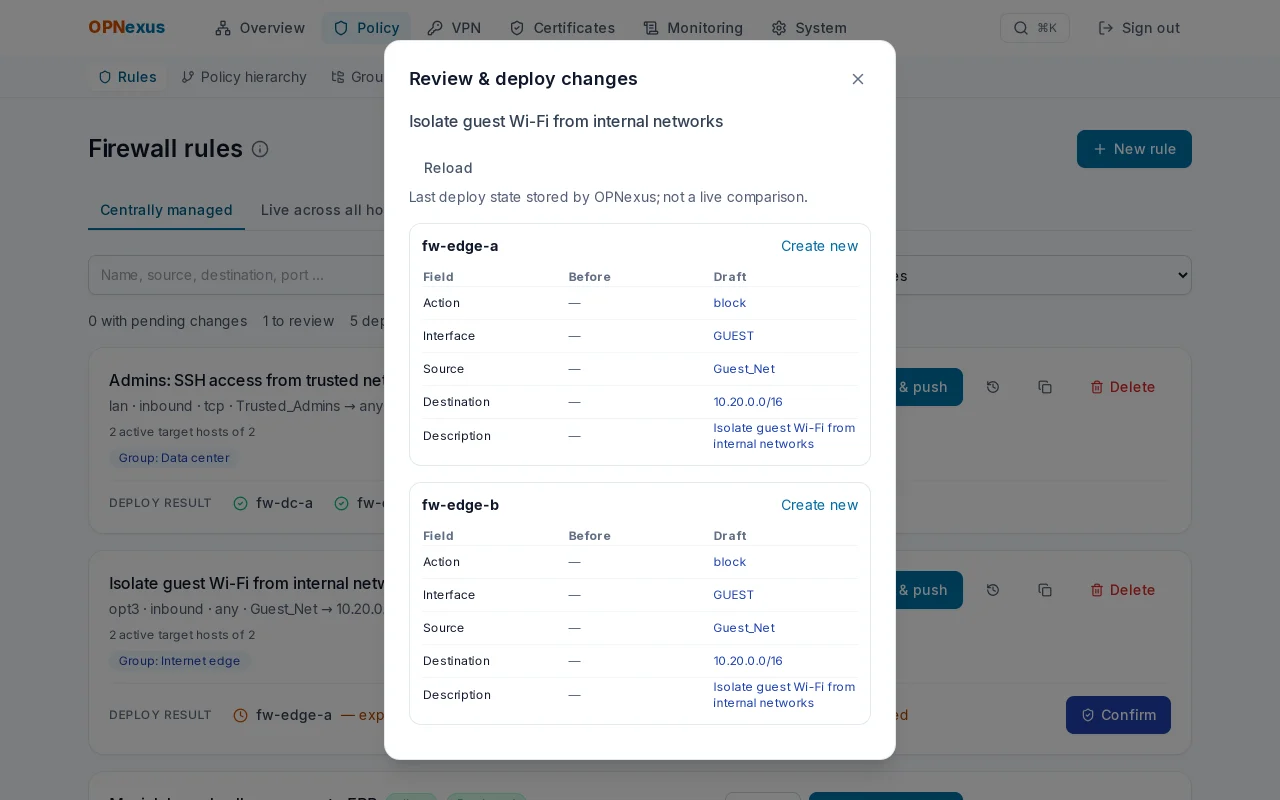

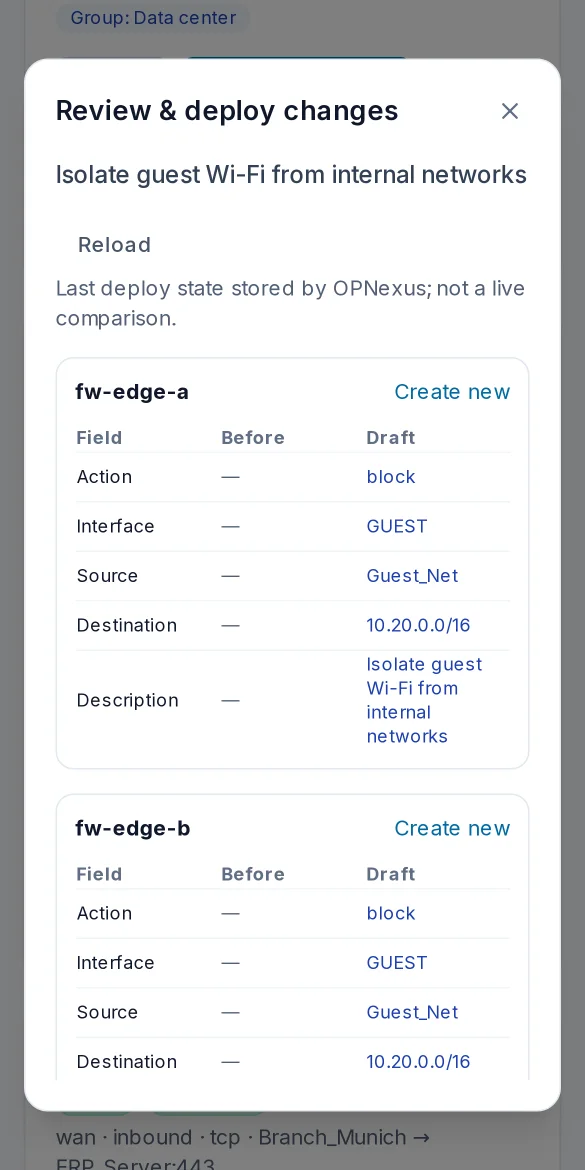

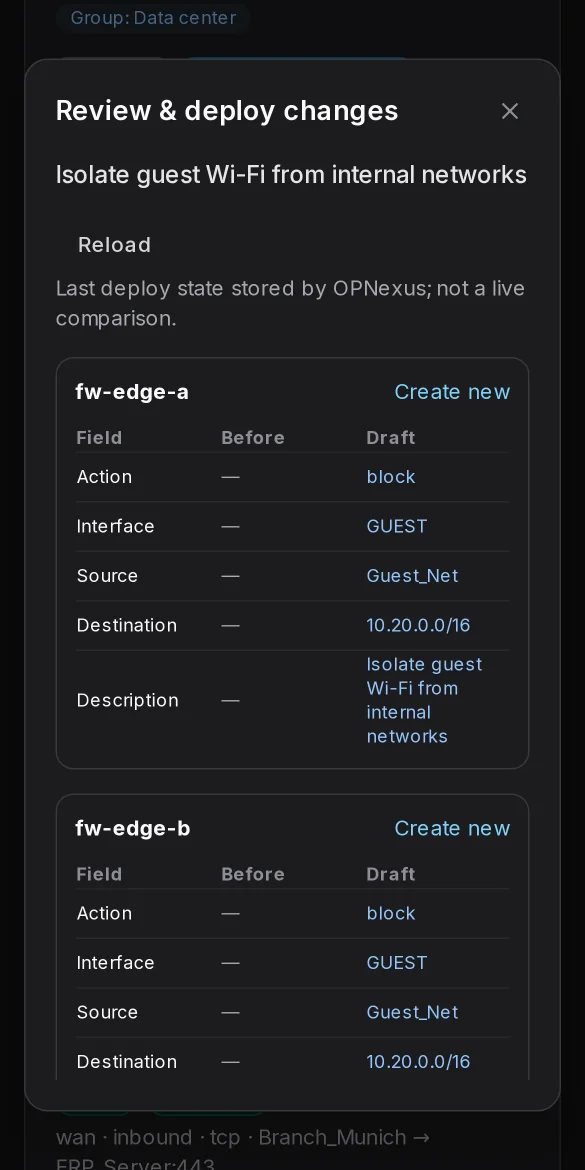

Preview → deploy → confirm
With a time window and automatic rollback if confirmation never comes.

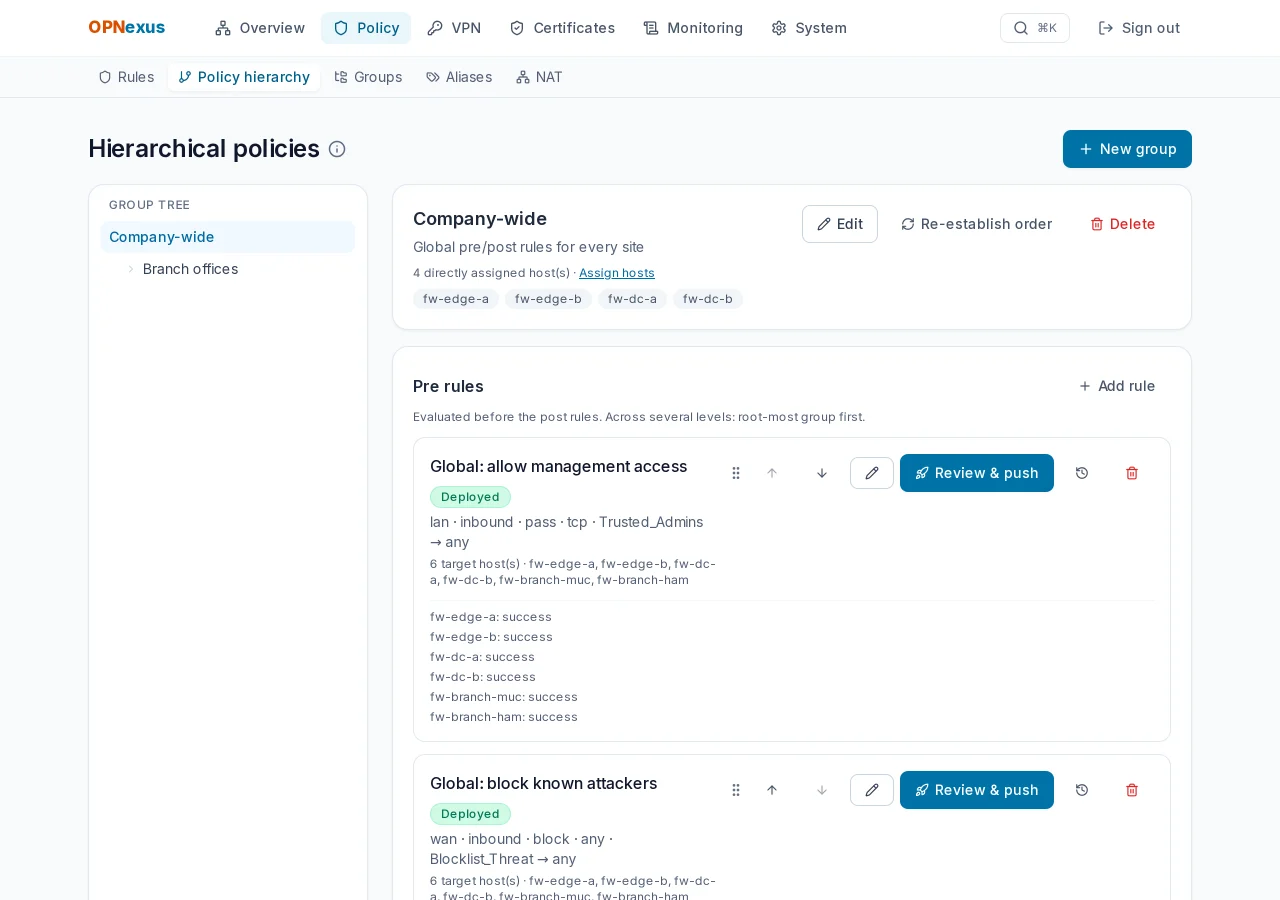

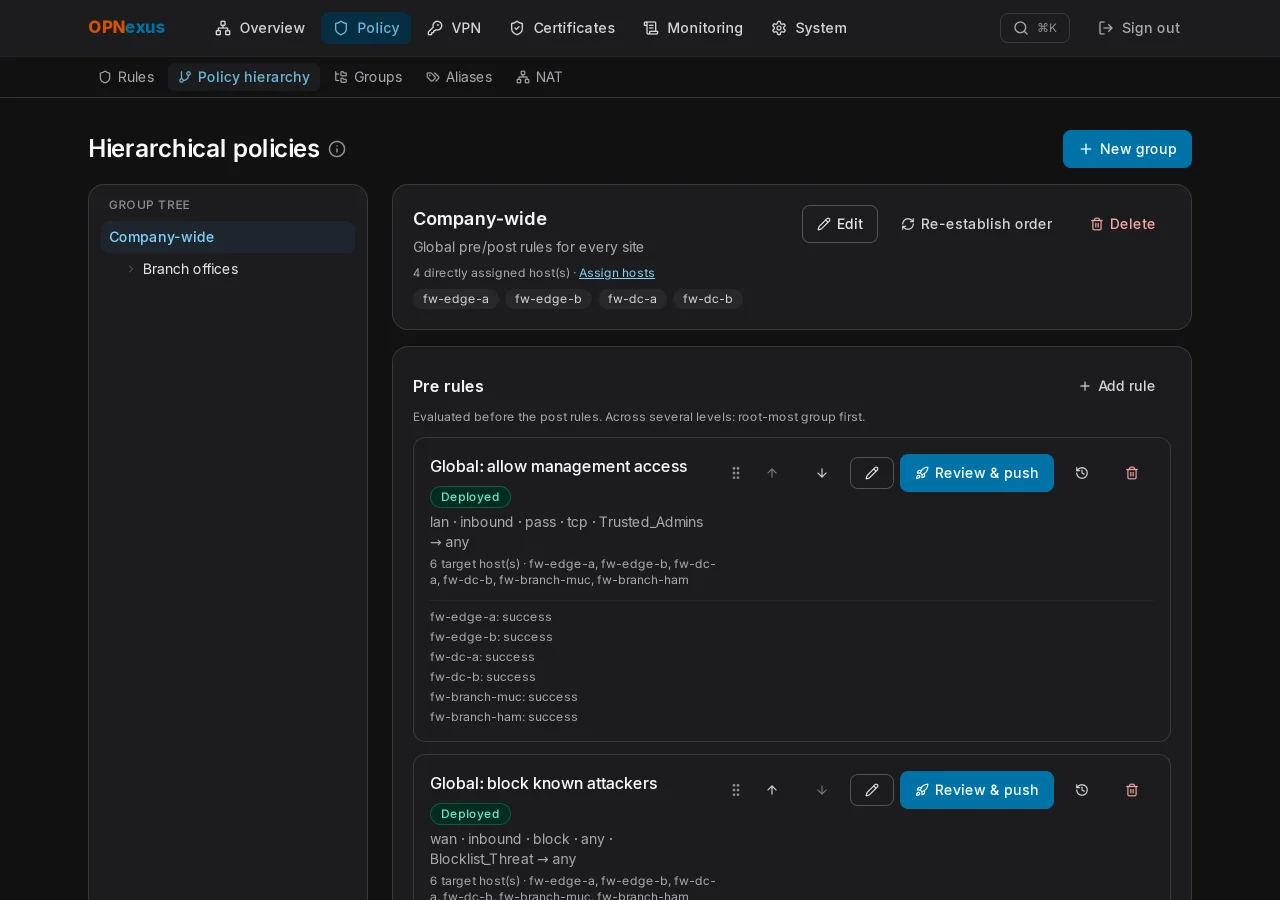

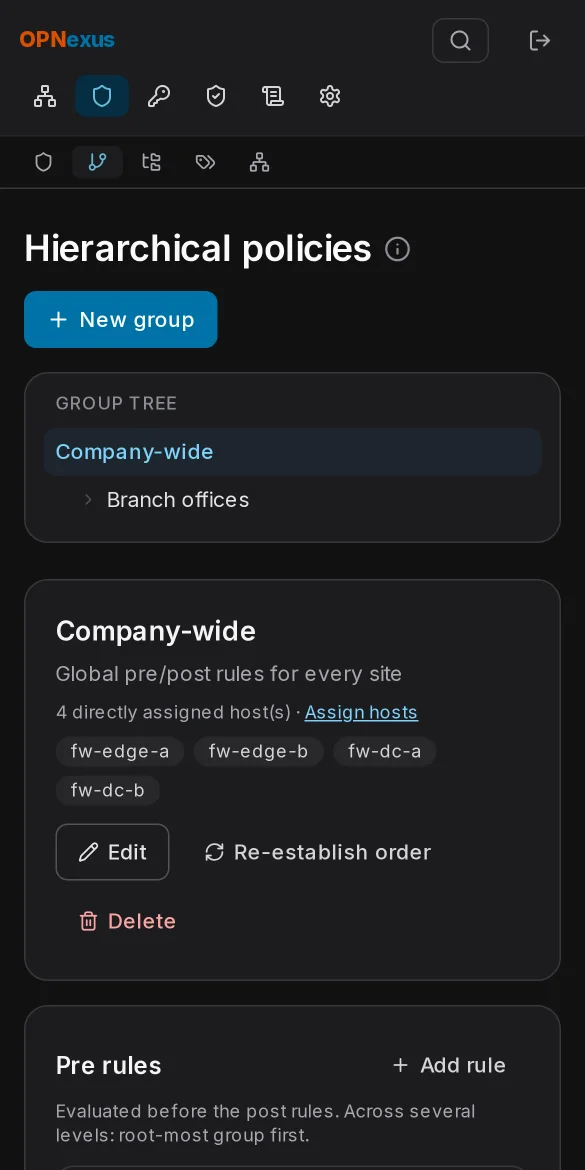

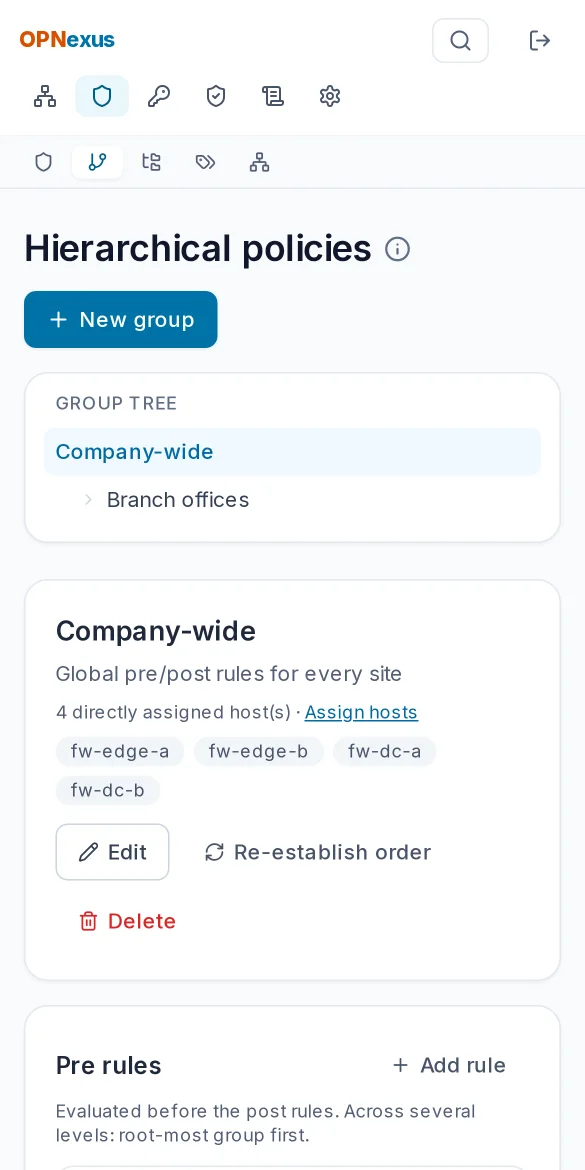

Hierarchical policies
Pre/post rulebases with inheritance down group trees, in the right order.
Device groups
Bundle hosts: one target, many firewalls.

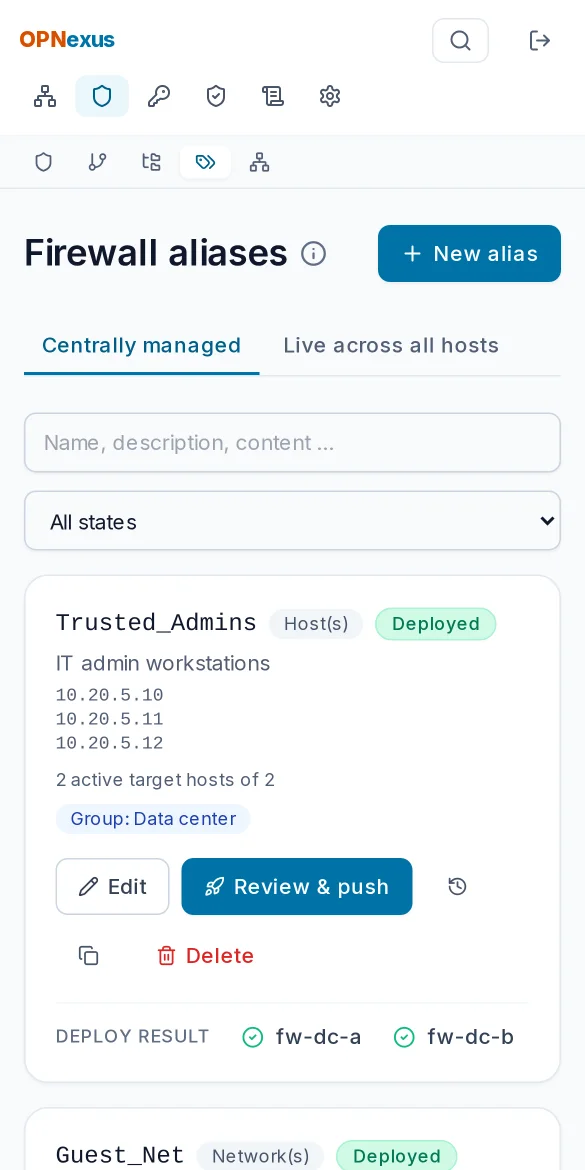

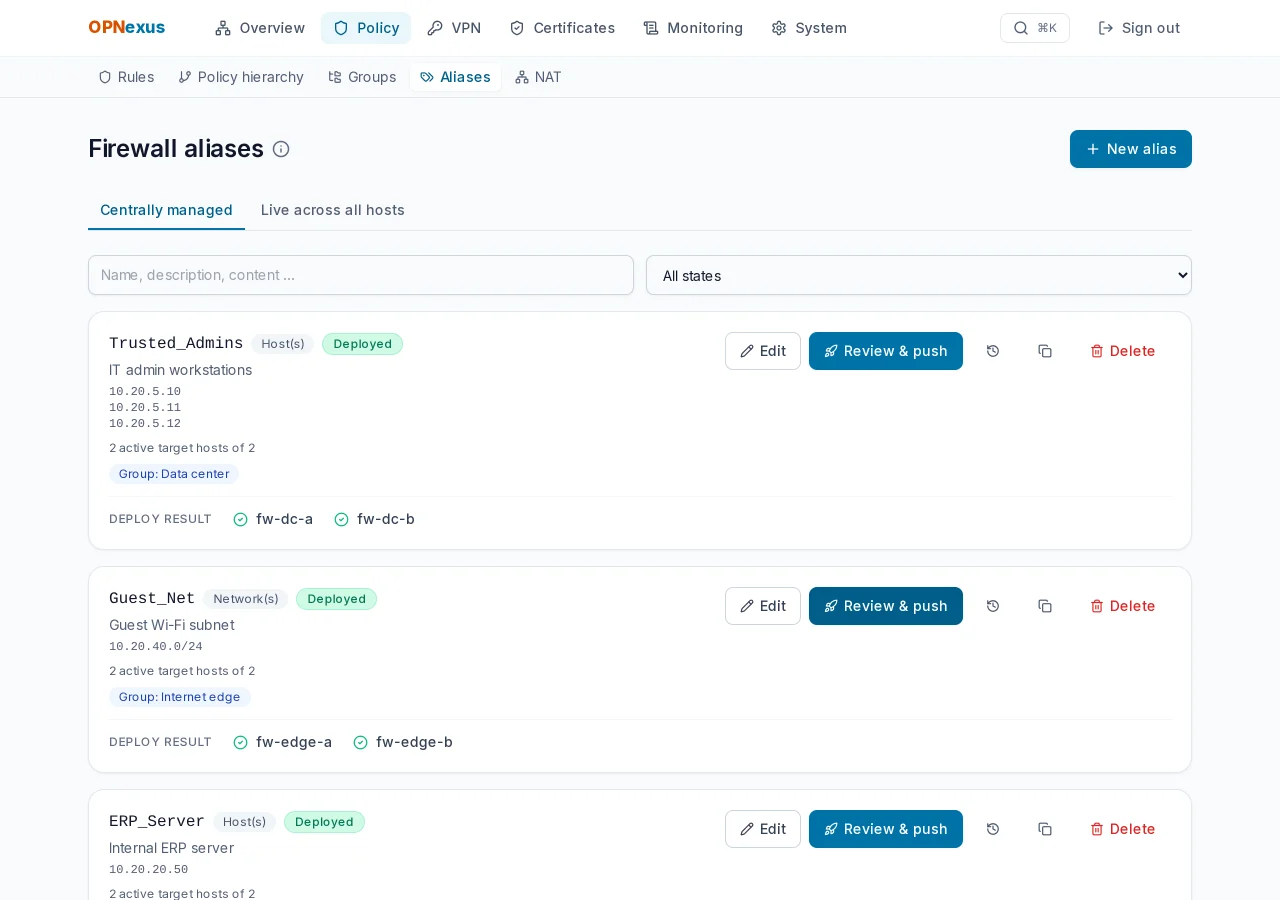

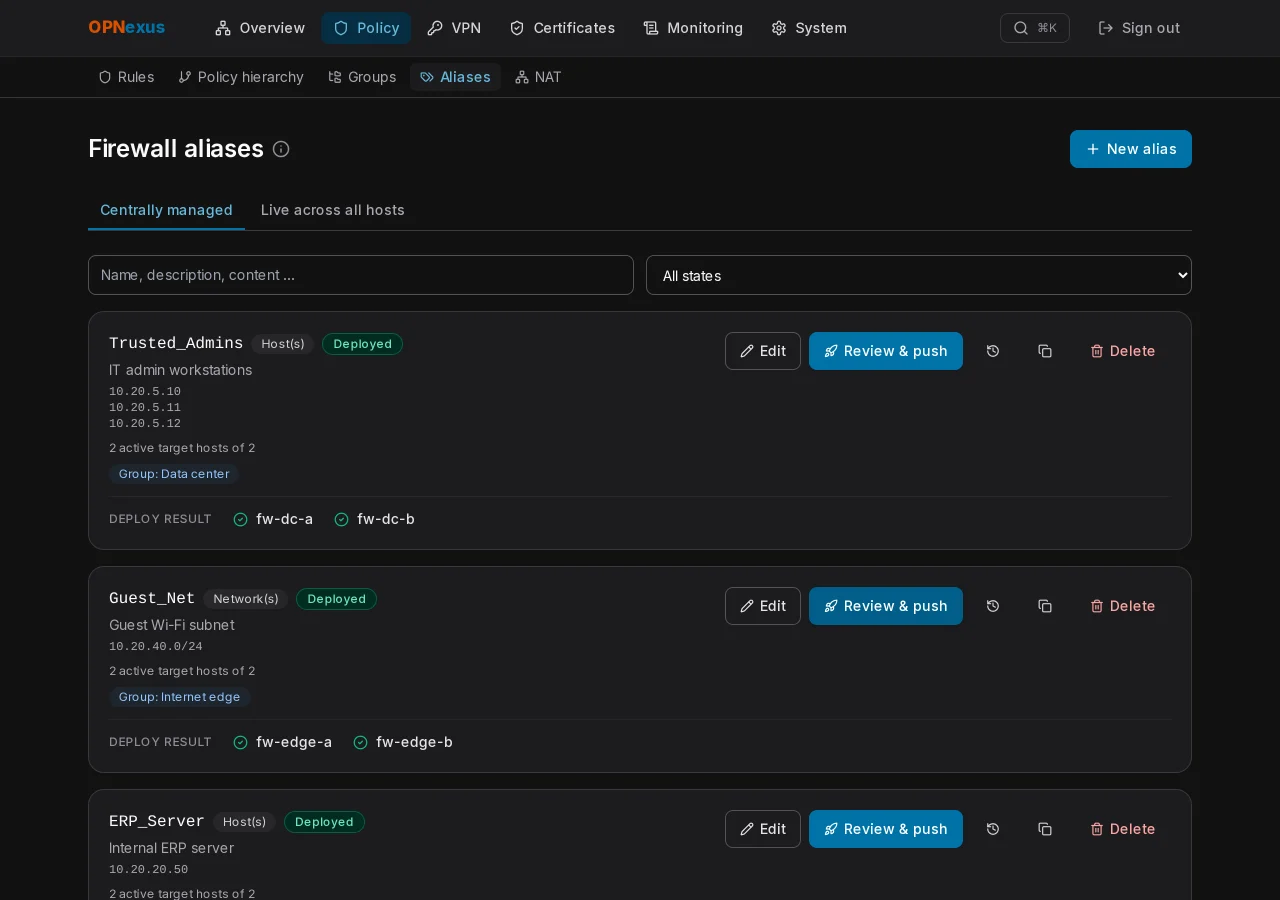

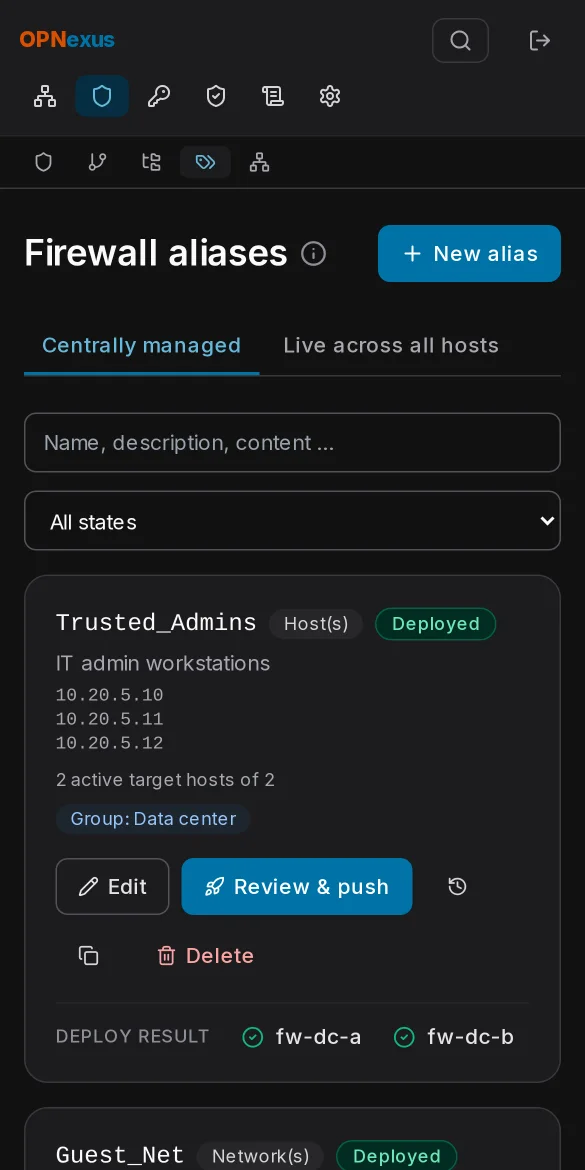

Aliases
Network objects (host, network, port, group, MAC, ASN) with the same flow as rules.
Per-rule history
Review earlier versions and restore them.
Drift detection
Differences between managed and actually active configuration are flagged.
Lockout protection
Every deploy starts on probation – if you lock yourself out, it is rolled back when the time is up.

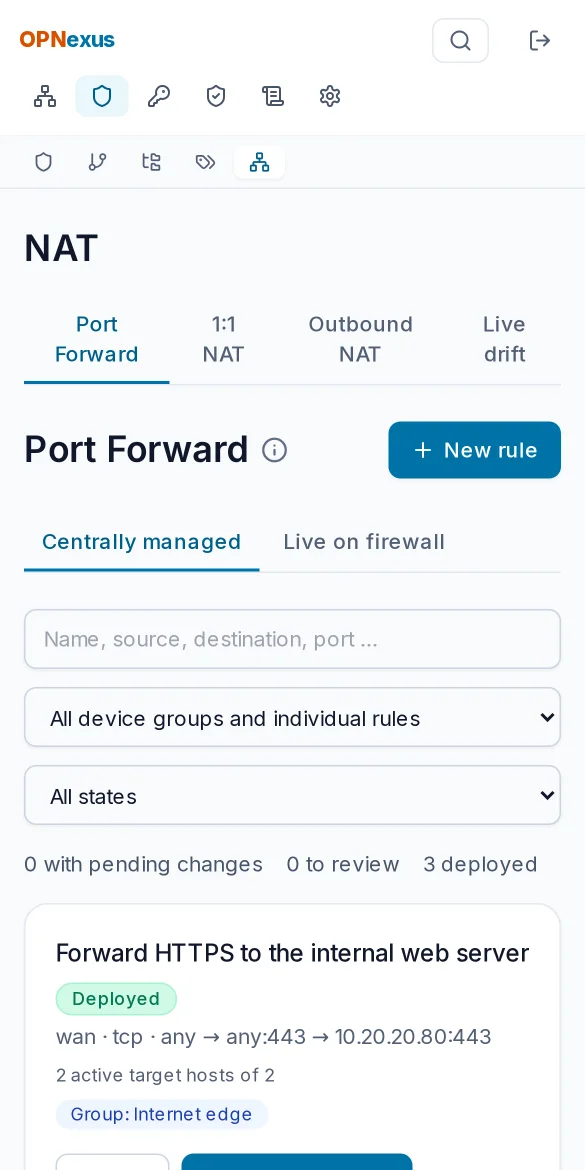

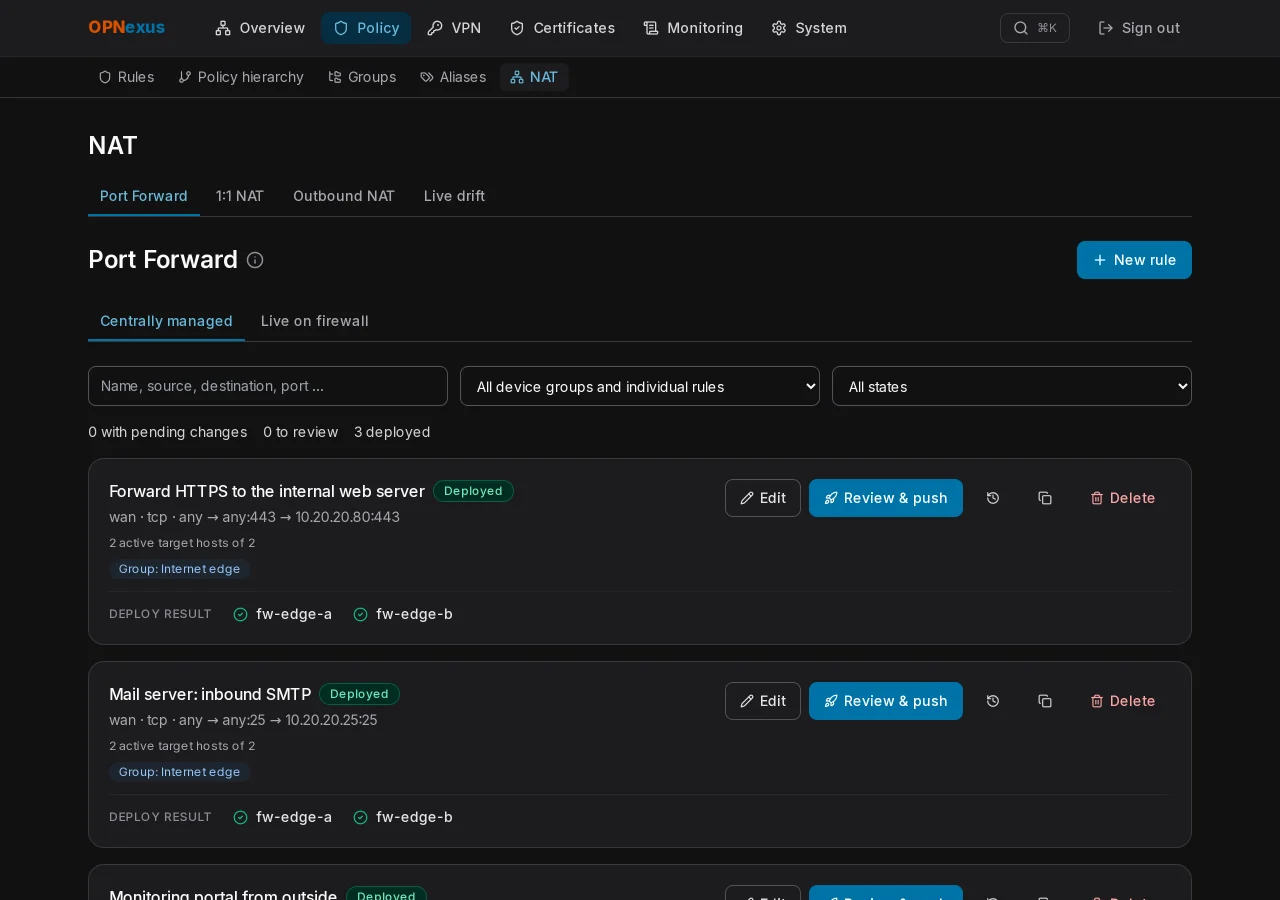

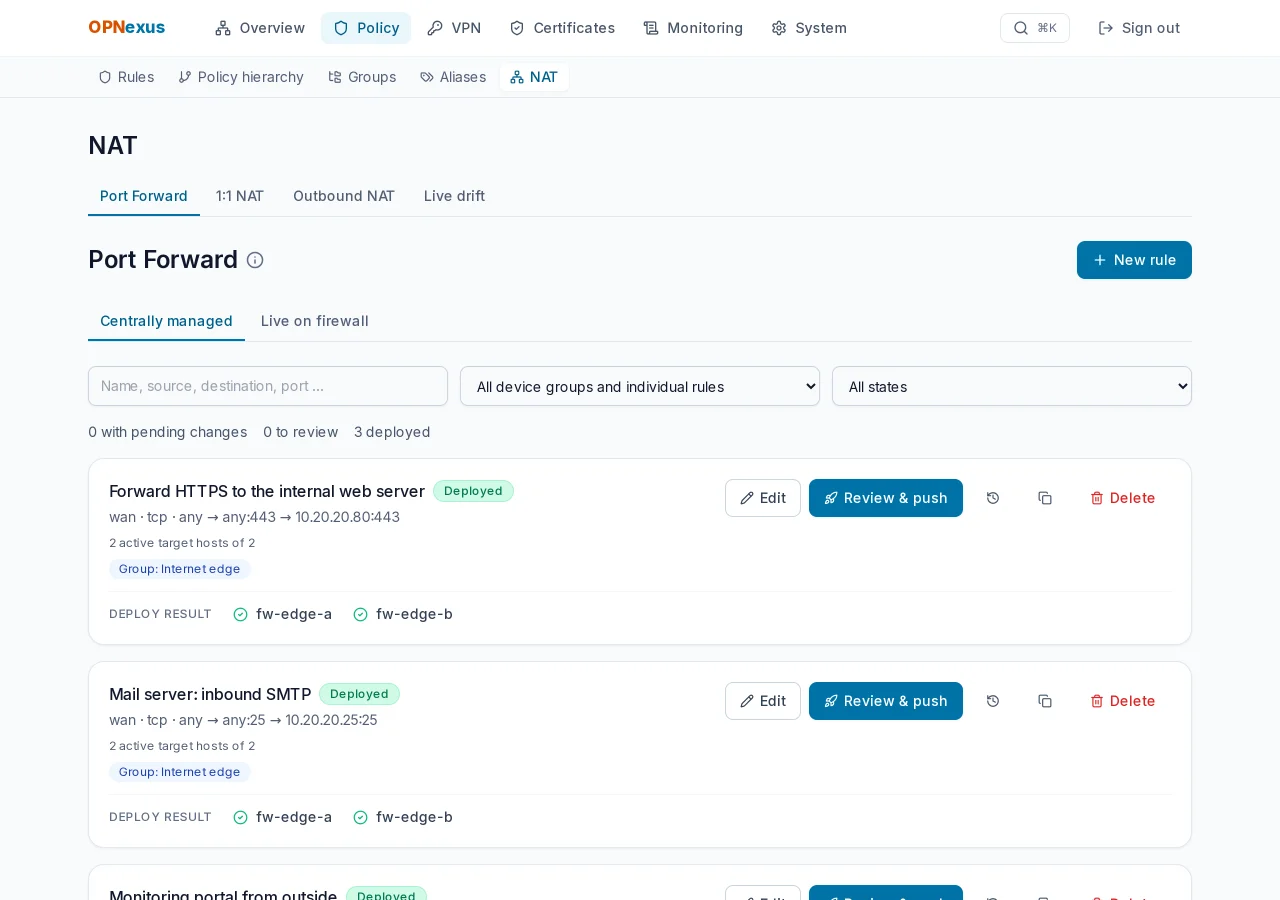

NAT & VPN

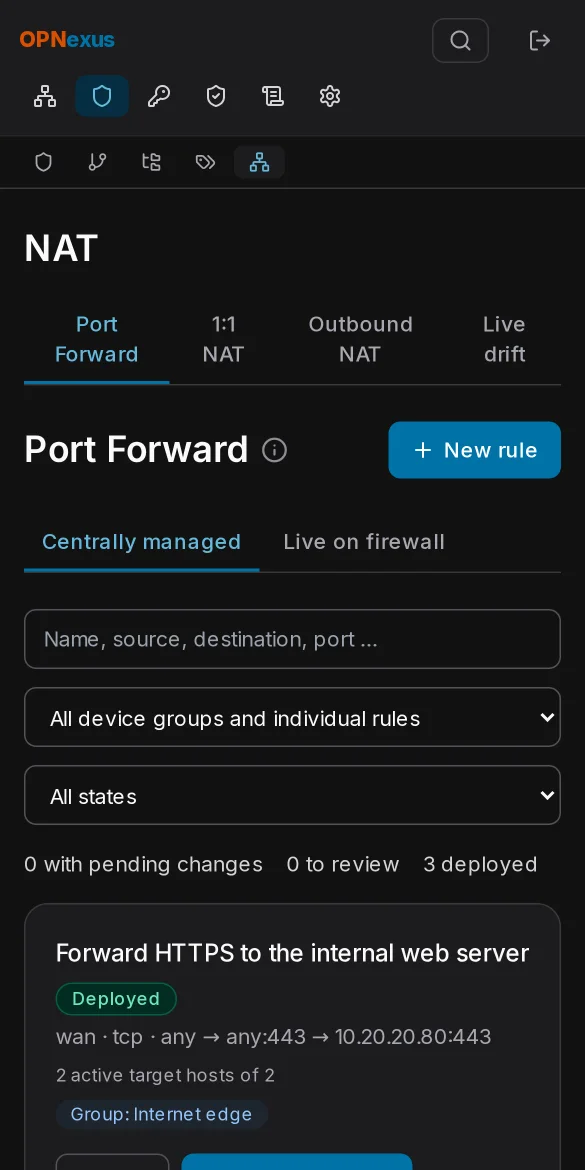

Port forward
Define and deploy port forwards centrally.
1:1 and outbound NAT
With a live view of the rules actually active on the firewall.
NAT drift
Differences between the nodes of a cluster are detected.

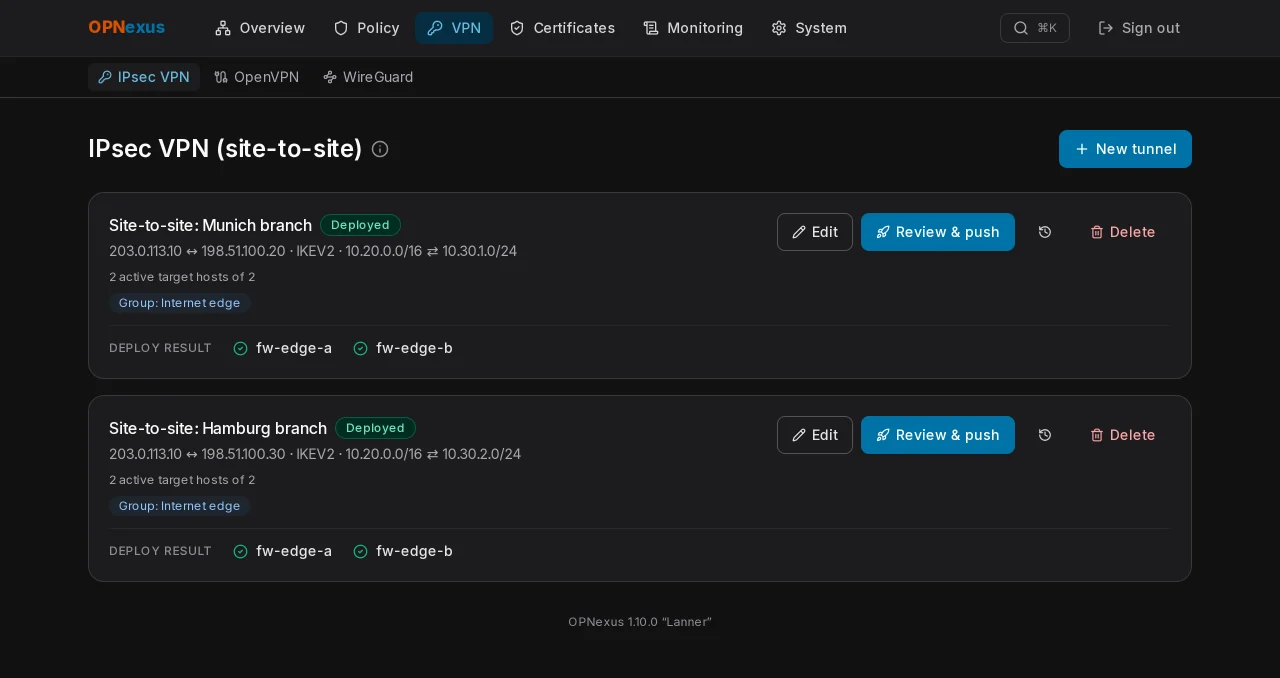

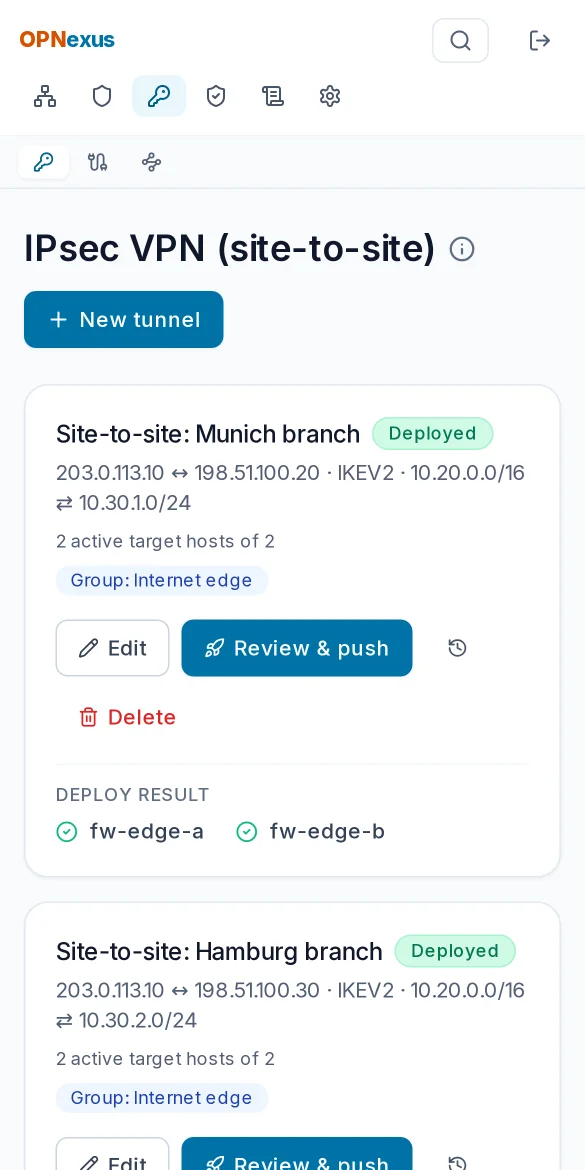

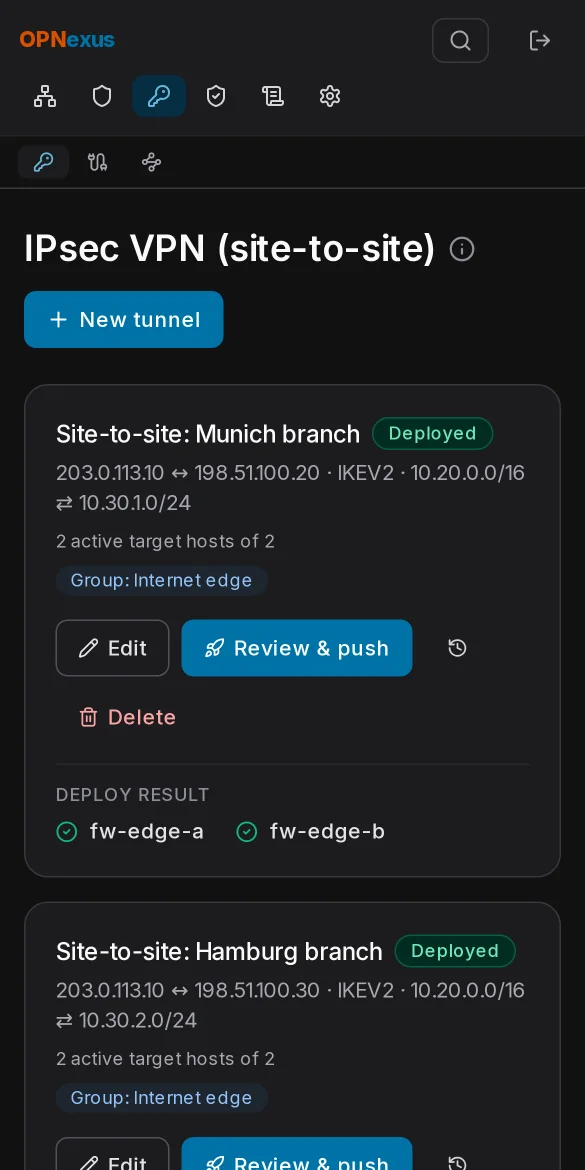

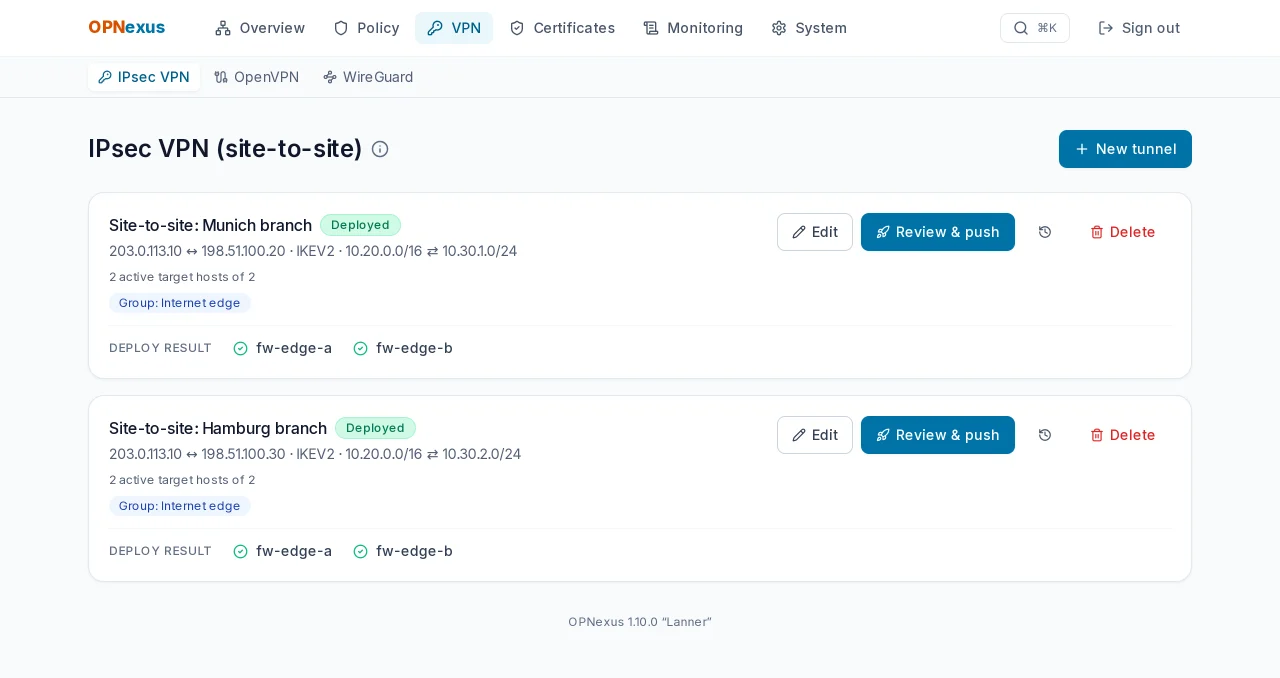

IPsec site-to-site
Manage tunnels with pre-shared key centrally.
OpenVPN
Server and client instances, optional TLS-Crypt, certificate and CA per host.

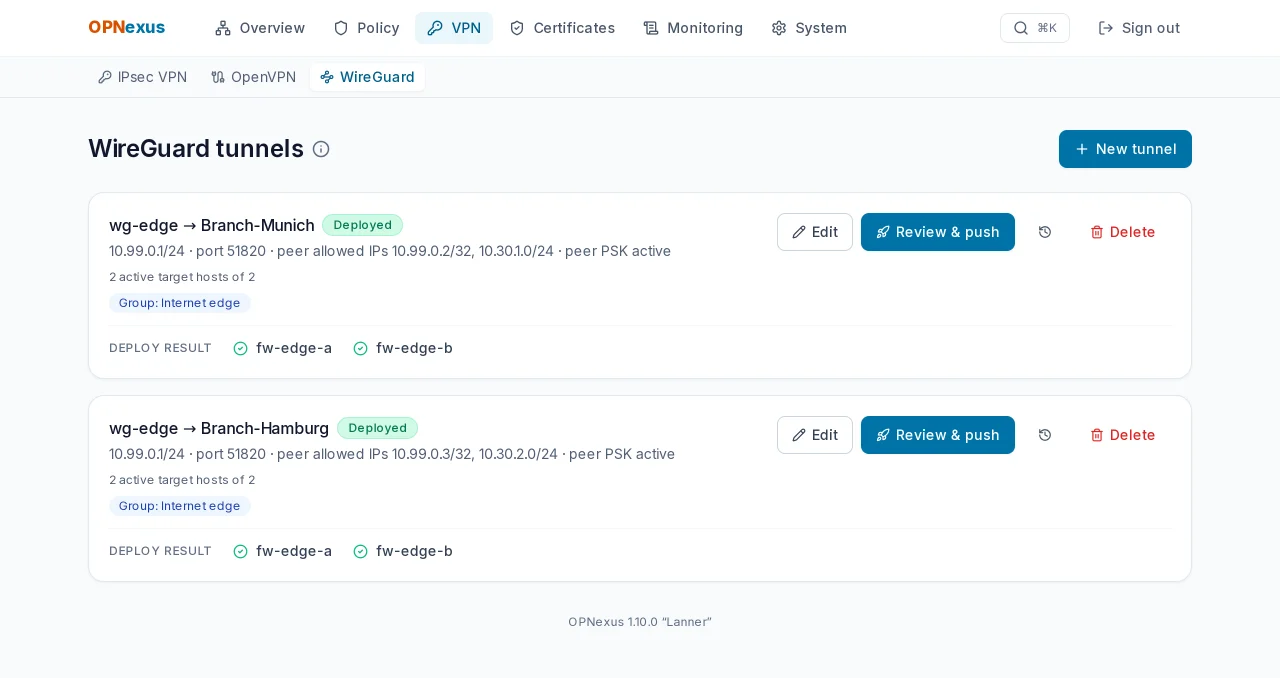

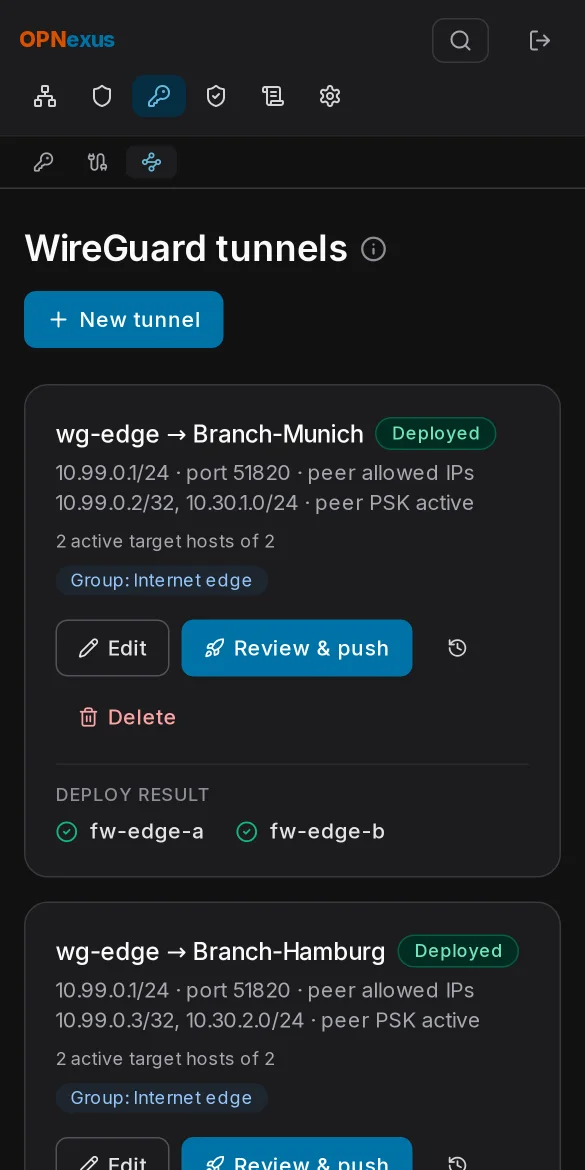

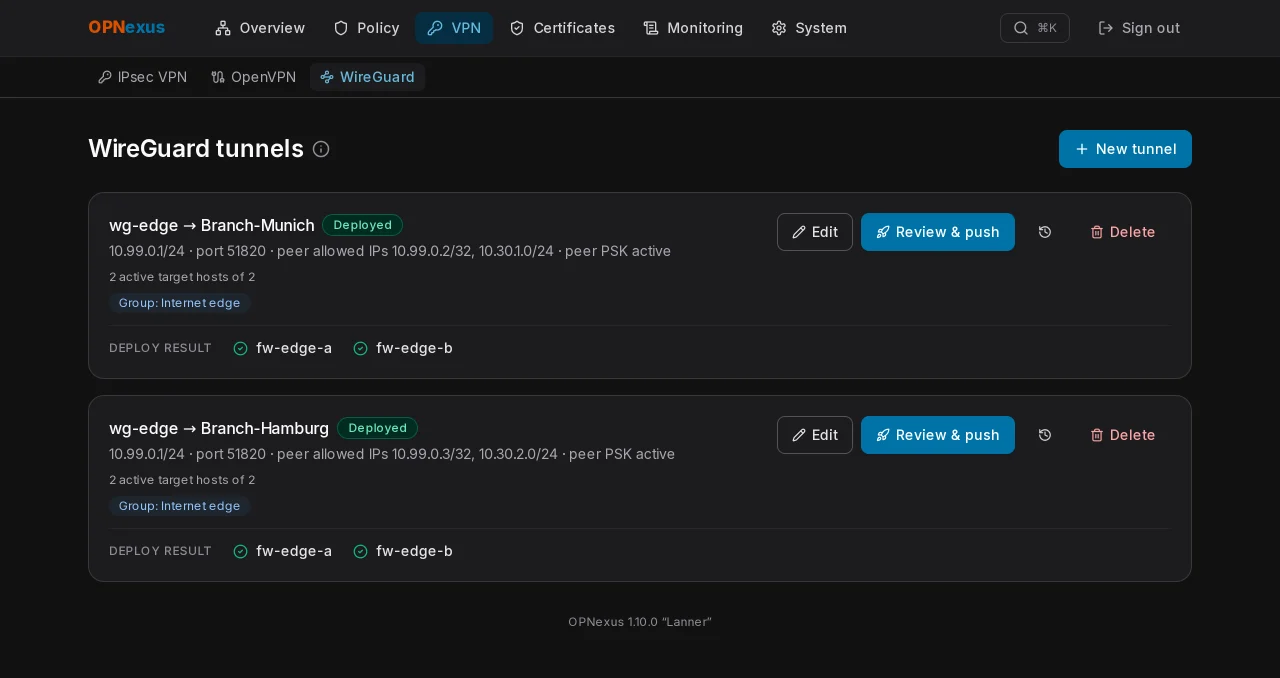

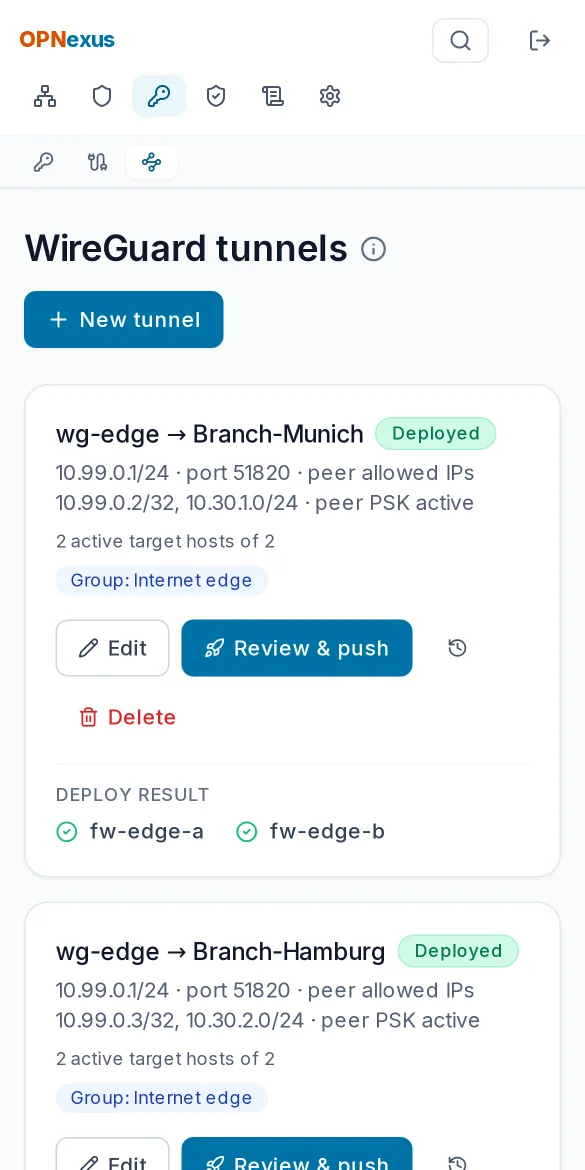

WireGuard
Servers and peers including optional pre-shared key.
Certificates

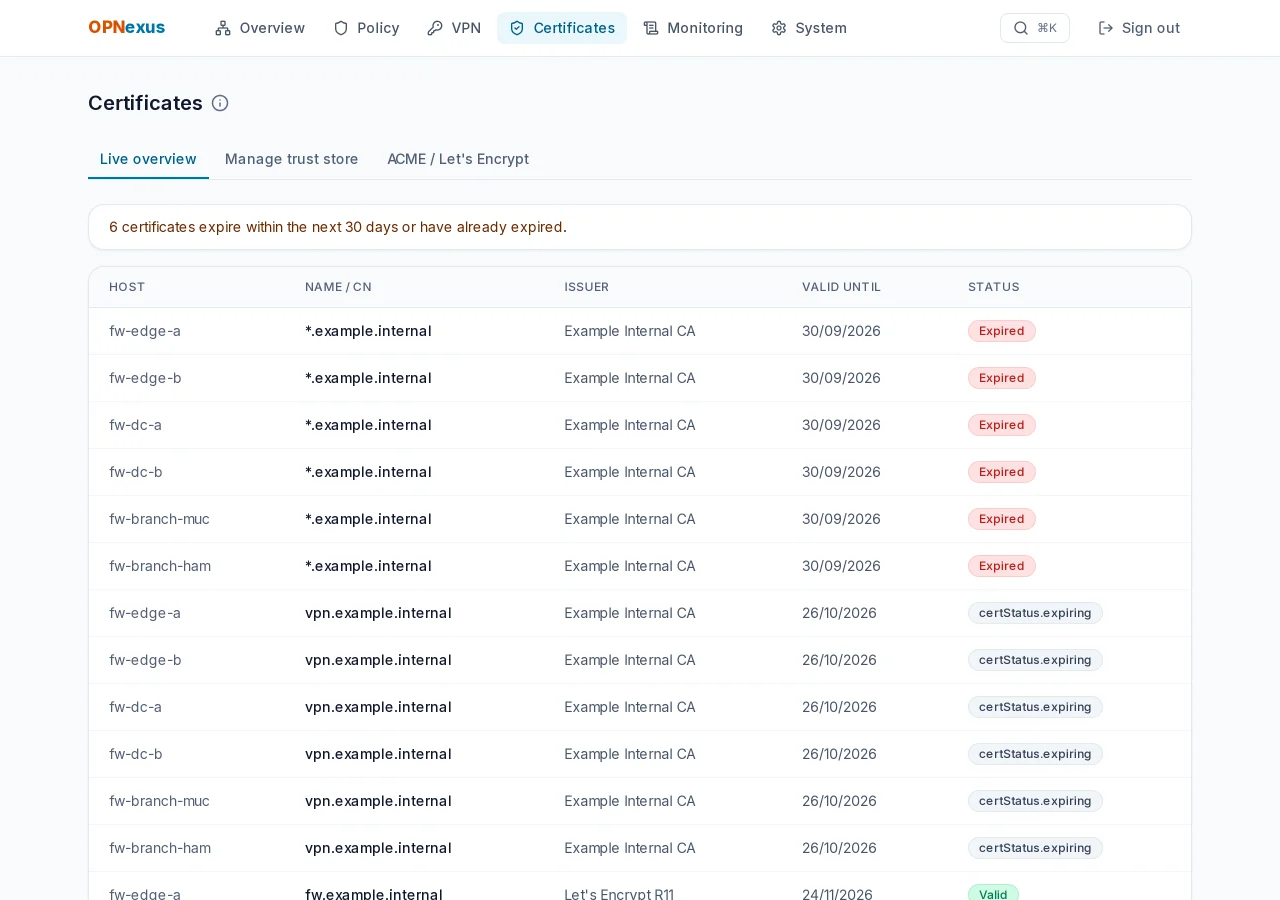

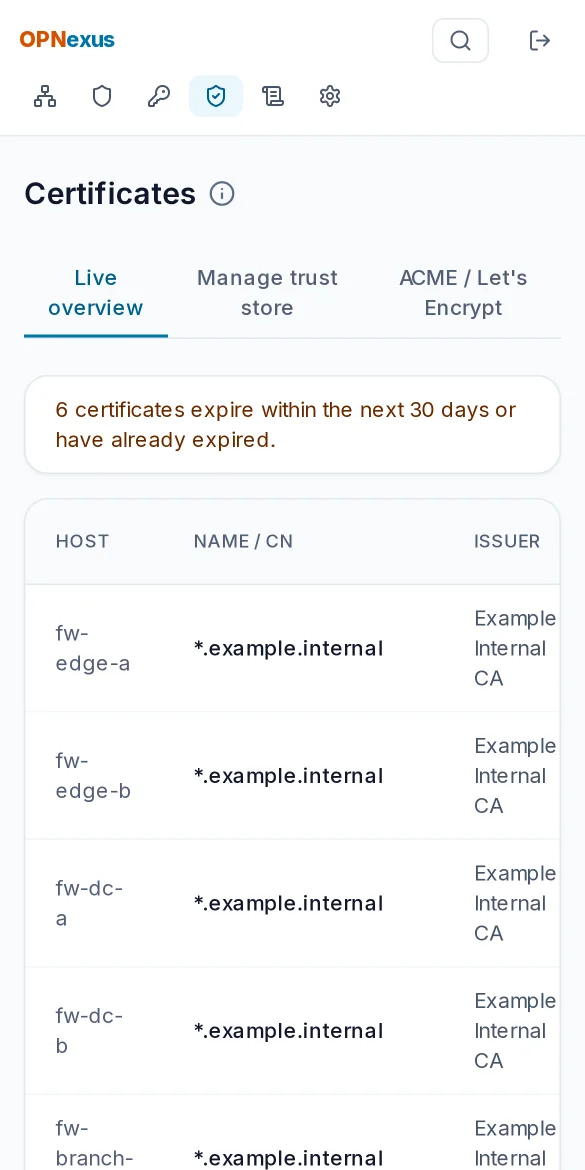

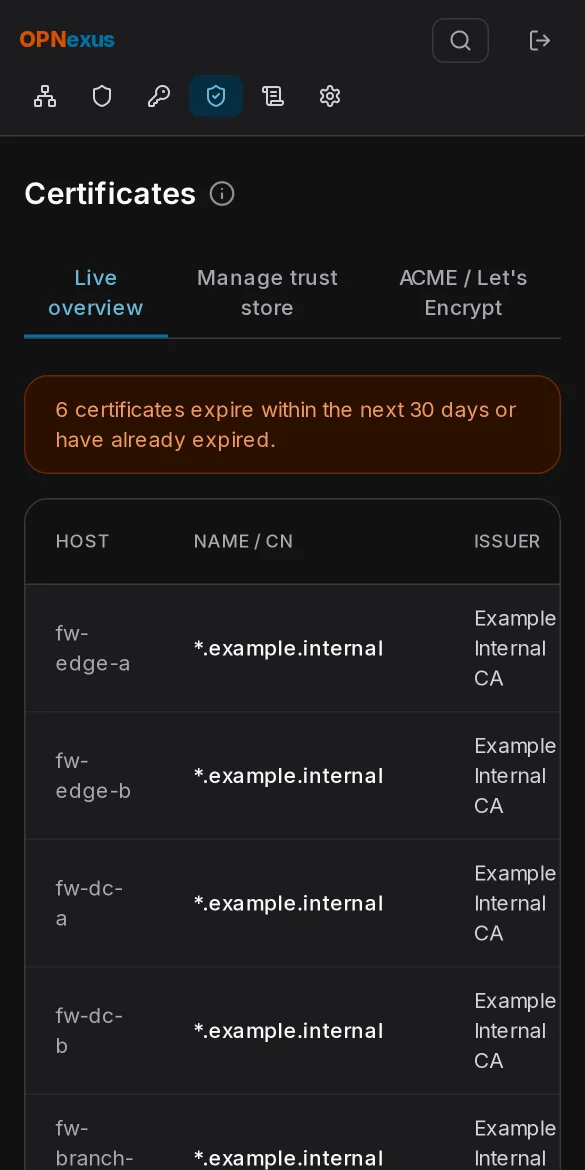

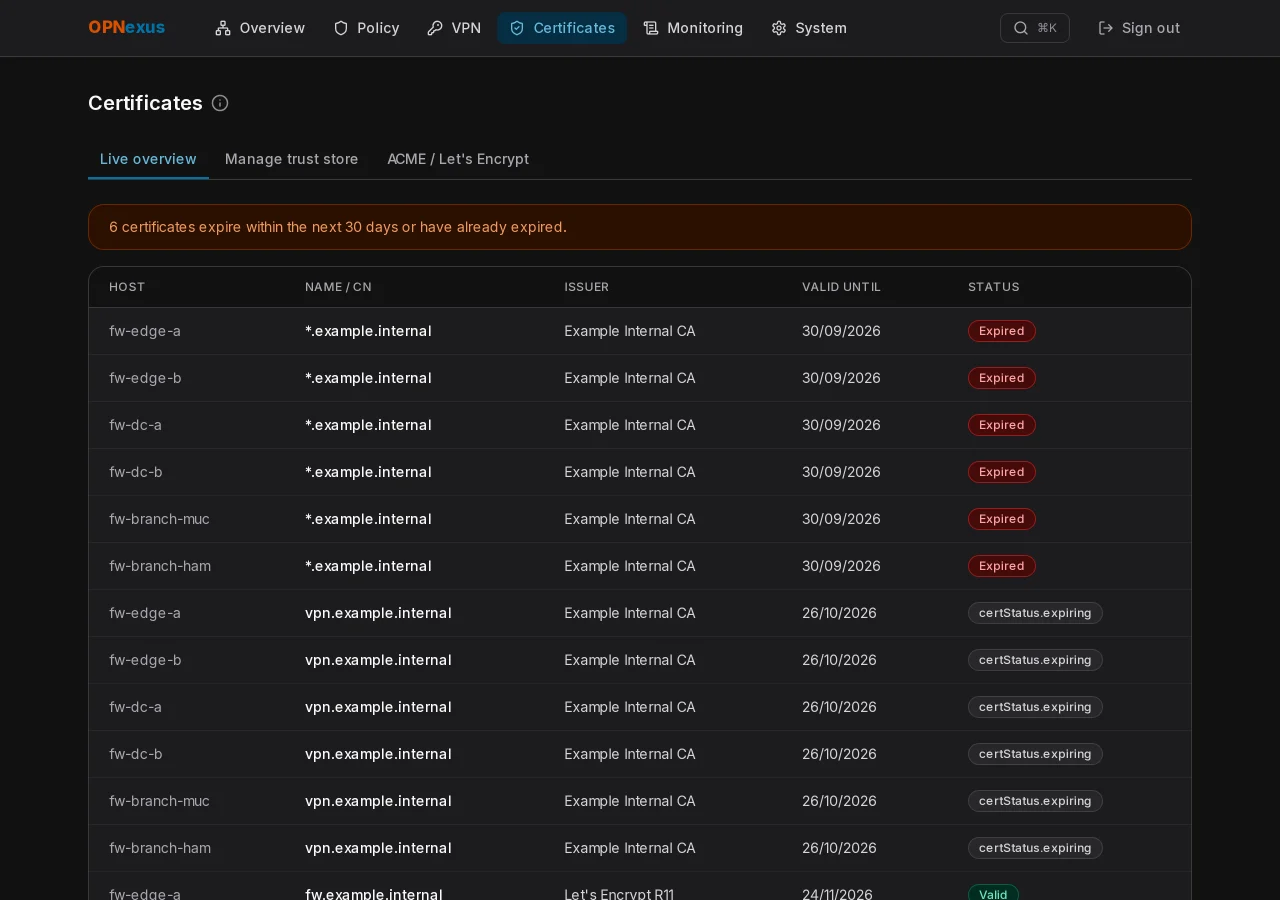

Live overview
All certificates and CAs in the fleet with remaining lifetime and status.
Trust store
Import certificates centrally and distribute them to firewalls.
ACME / Let’s Encrypt
Issue directly from OPNexus – with a warning before any contact with a real CA.
Monitoring & notifications

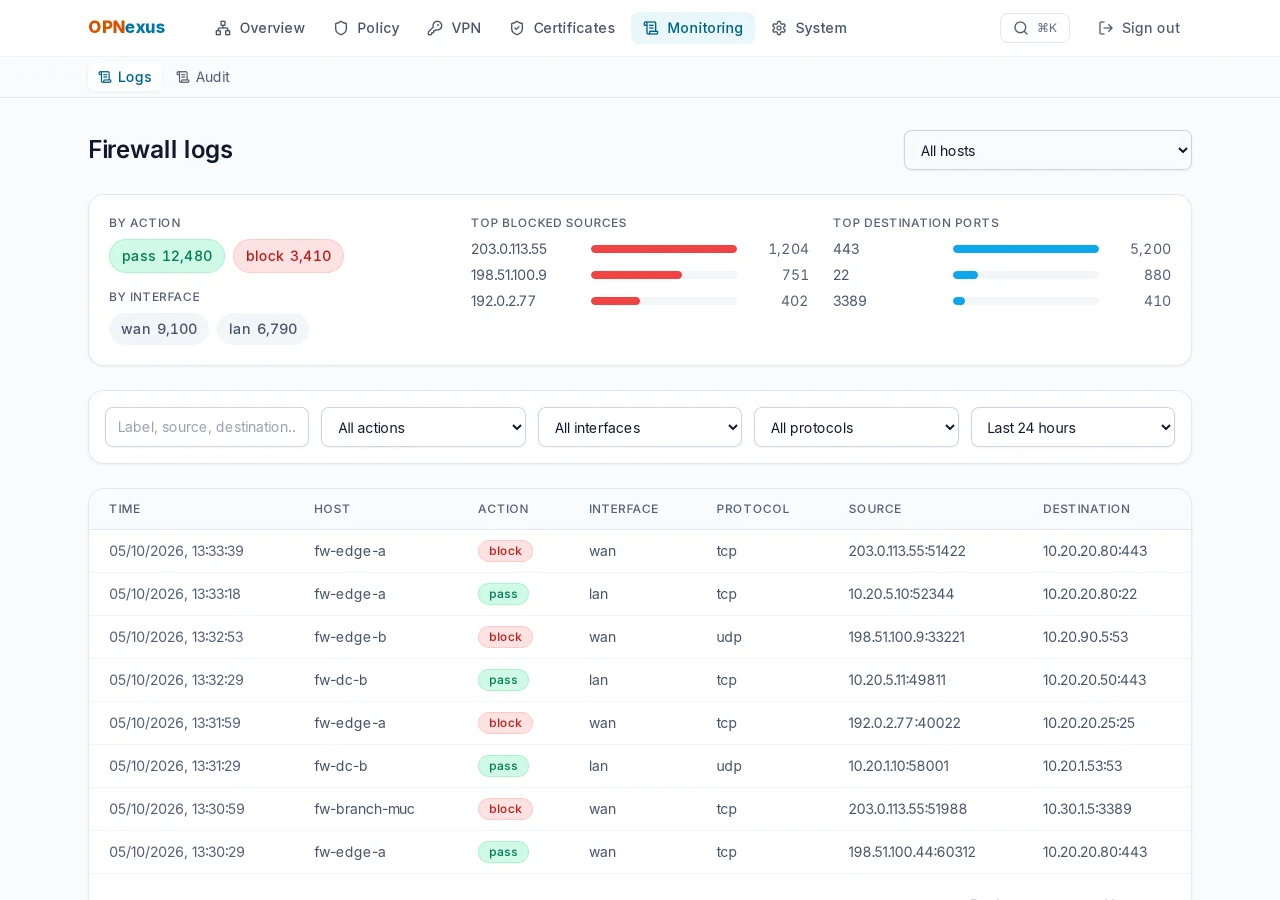

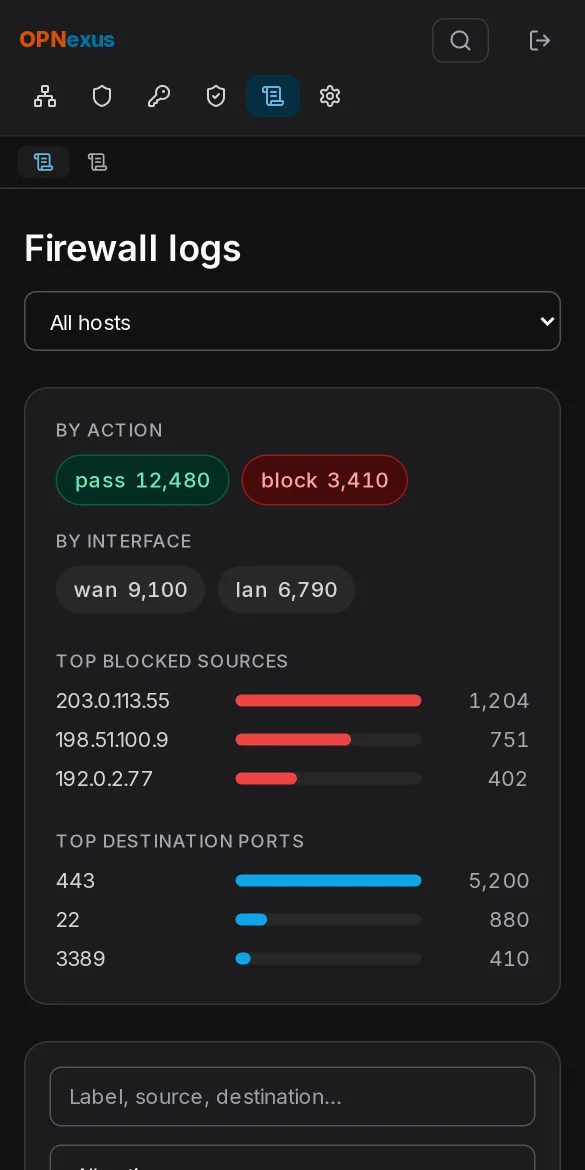

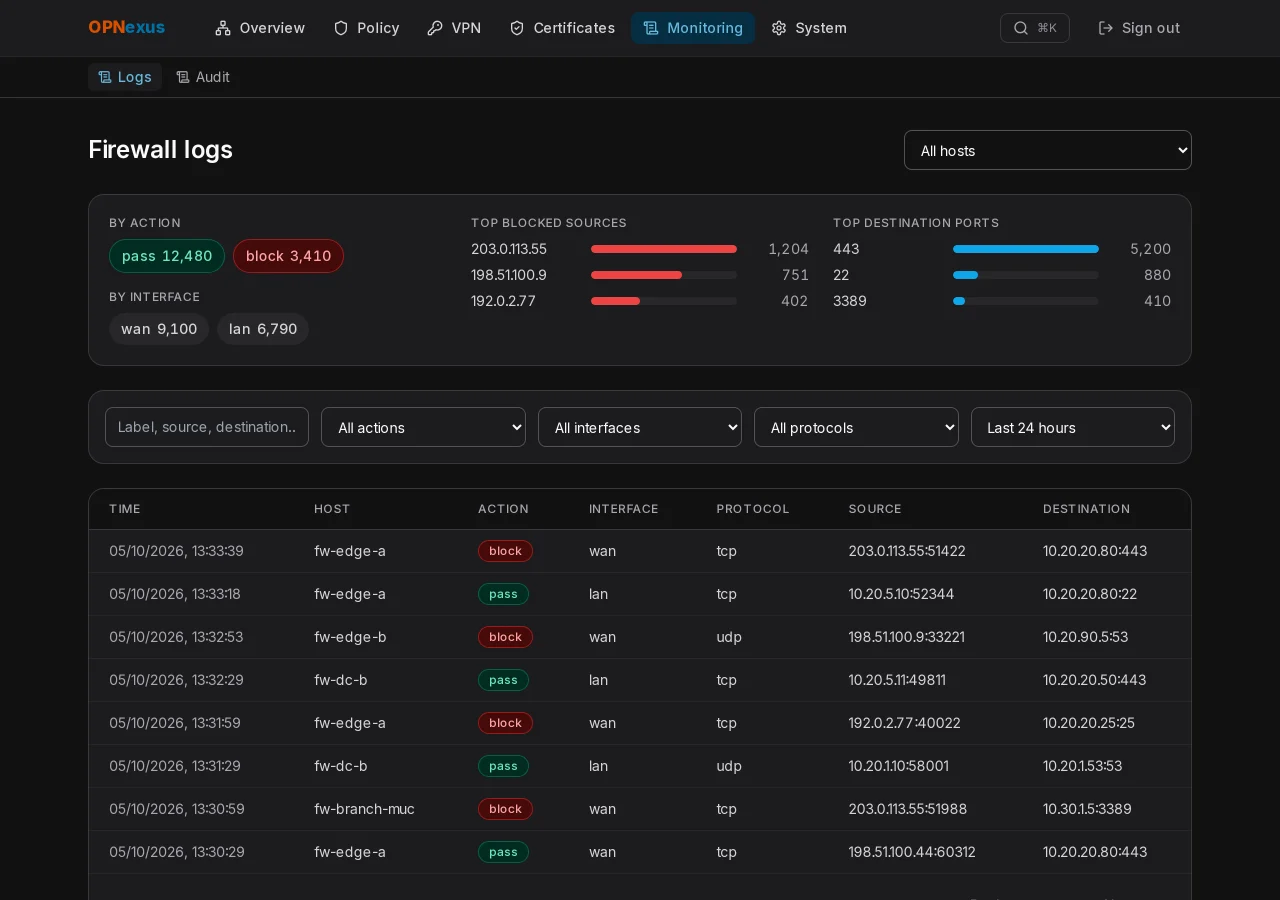

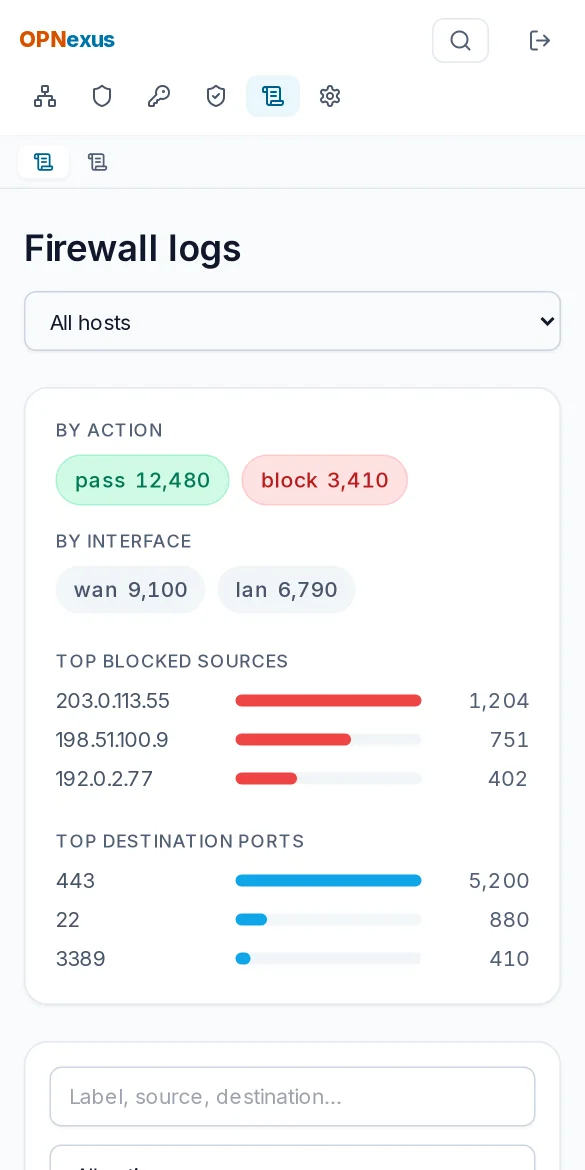

Central log search
Firewall logs are ingested, searchable and filterable.
Log dashboards
Top sources, top destination ports and the pass/block split.
Size limit & retention
Maximum size and retention period of the logs are configurable.

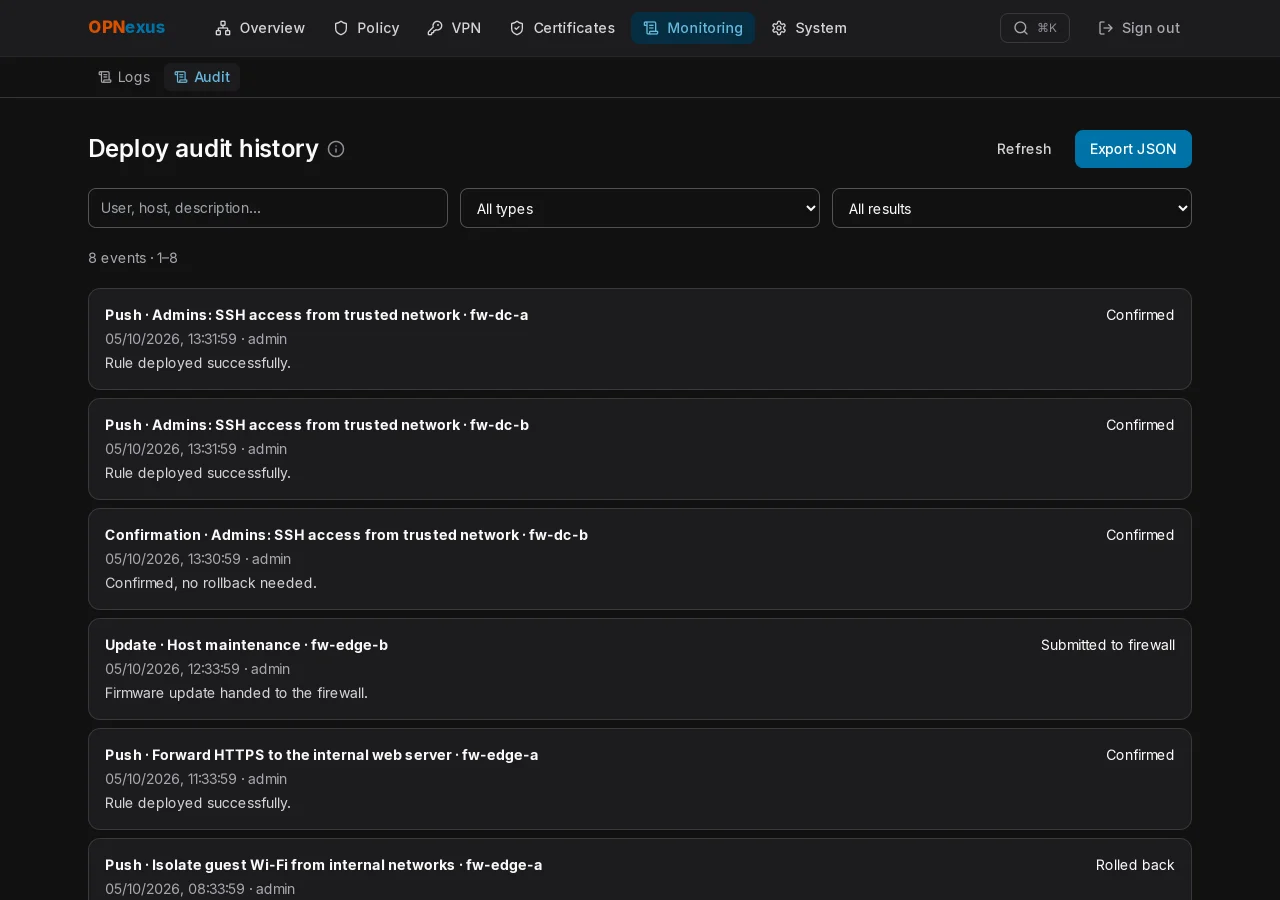

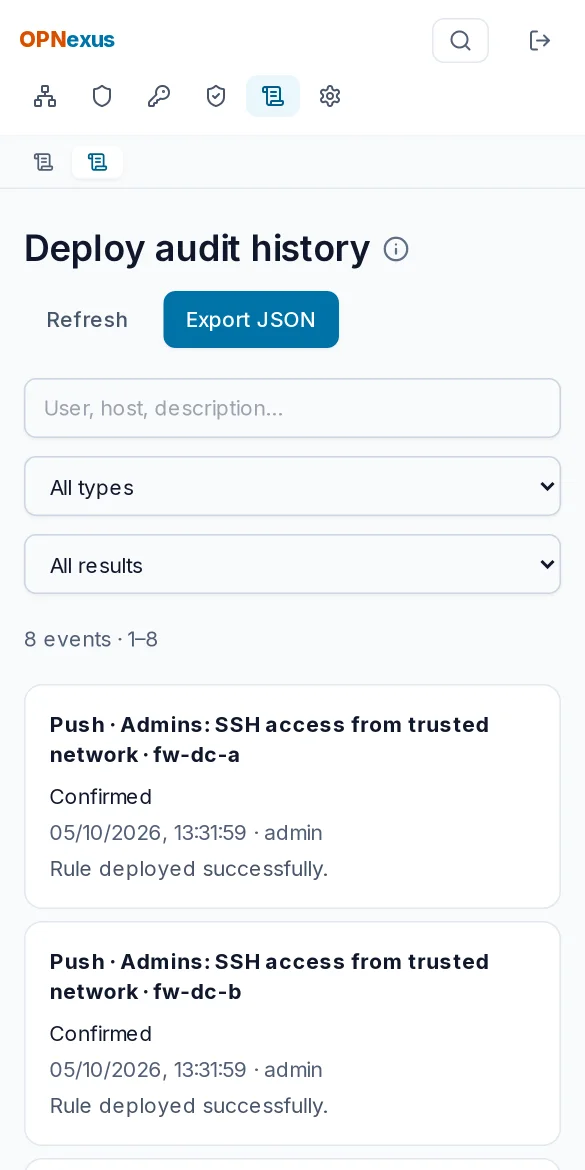

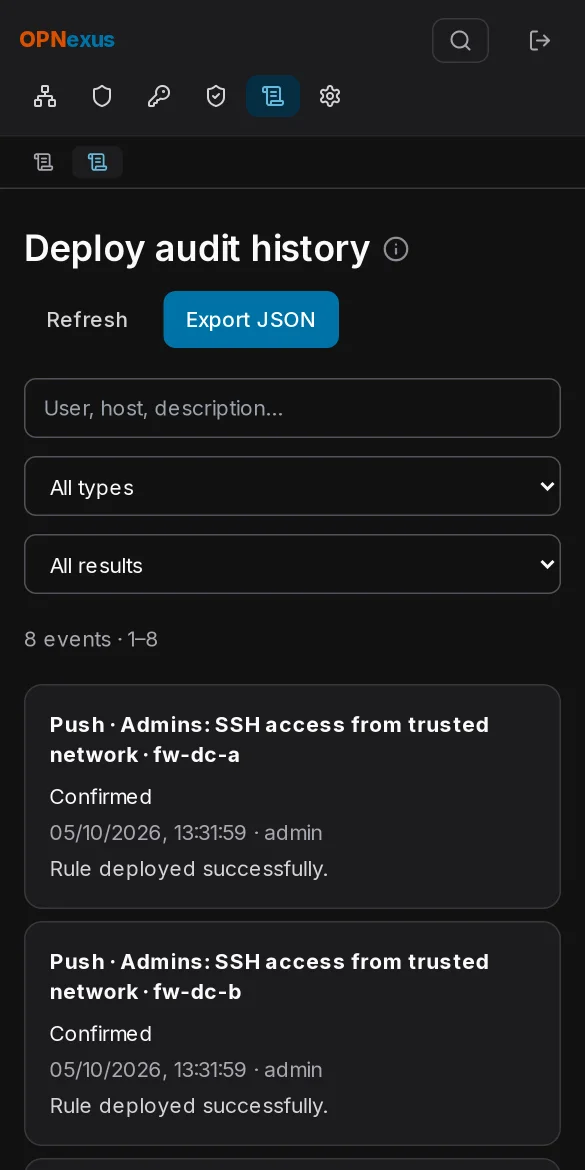

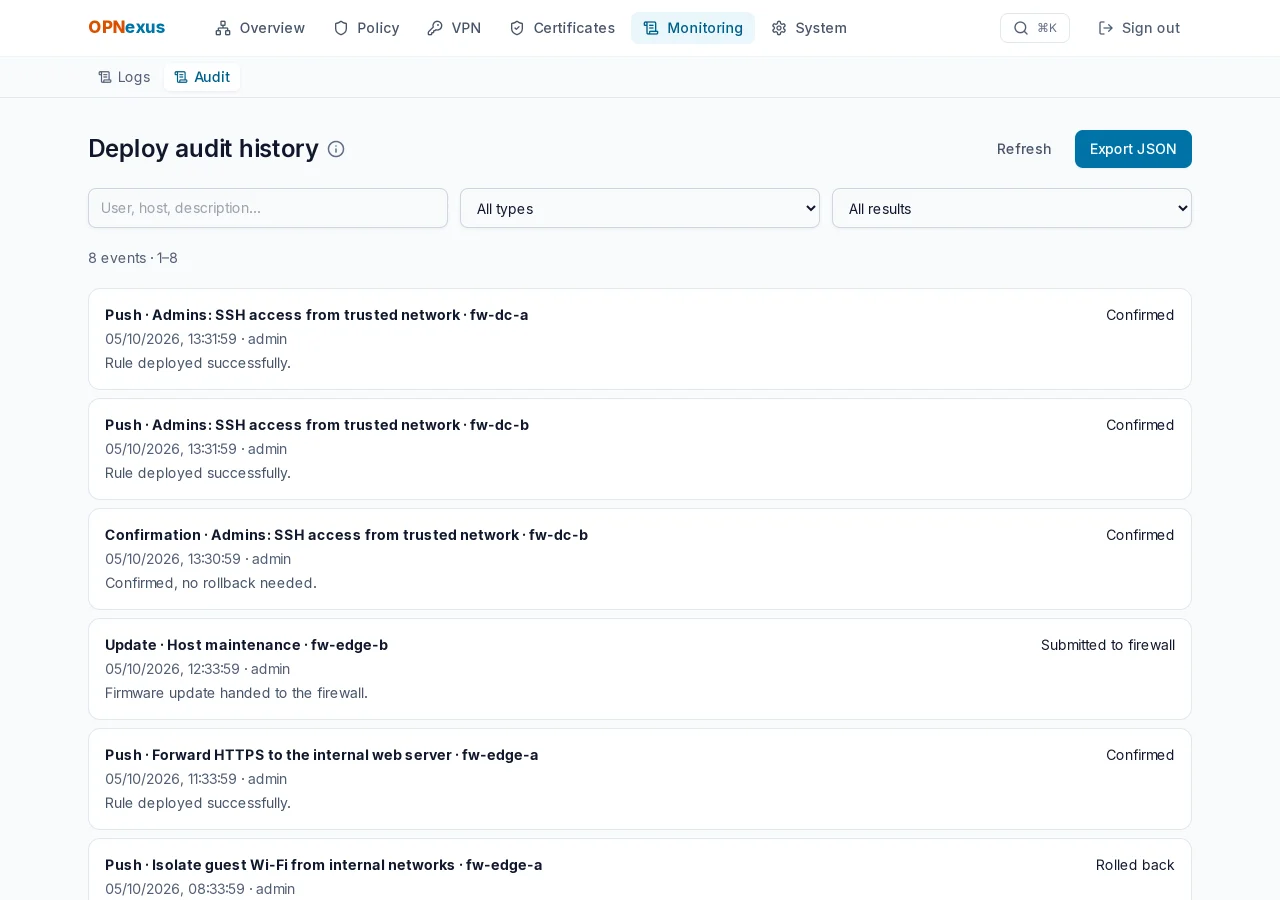

Audit history
Complete, with JSON export; survives deleting rules or hosts.
Webhook & email
Signed webhooks and SMTP email for host offline, certificate expiry, drift, split-brain and failed rollback.
Updates & maintenance

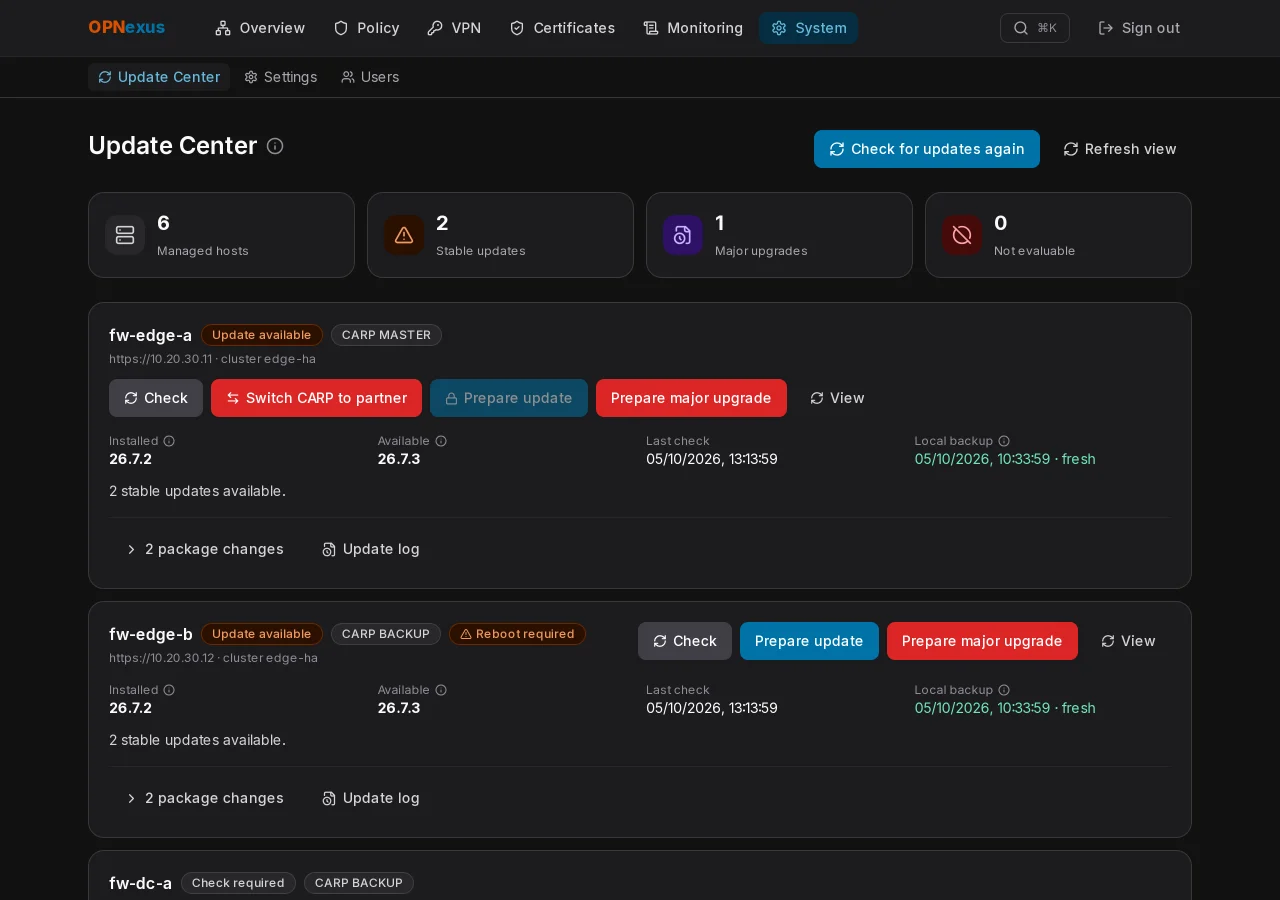

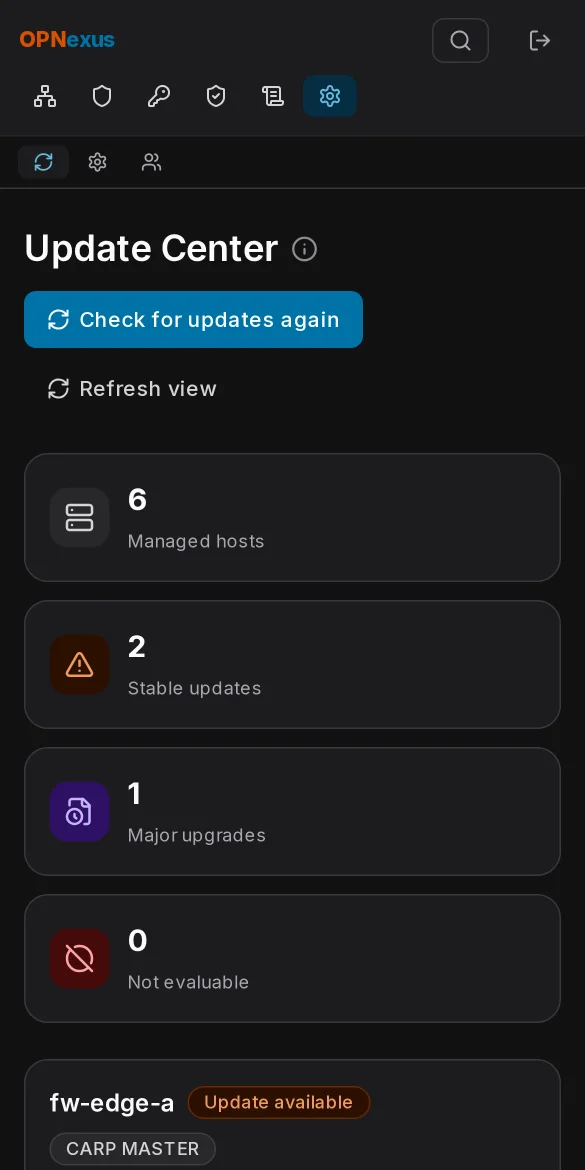

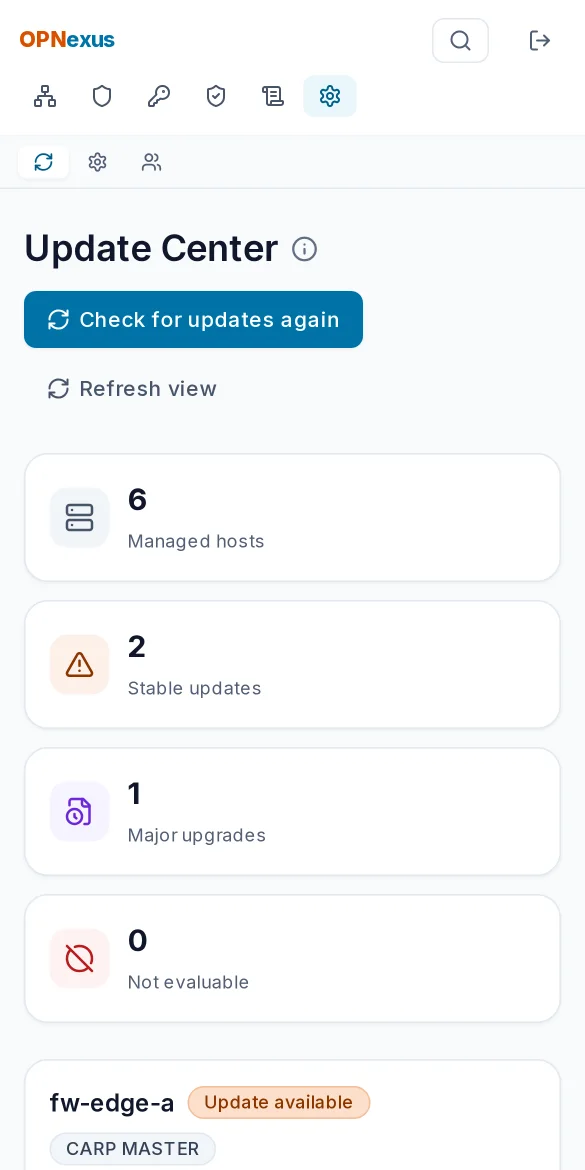

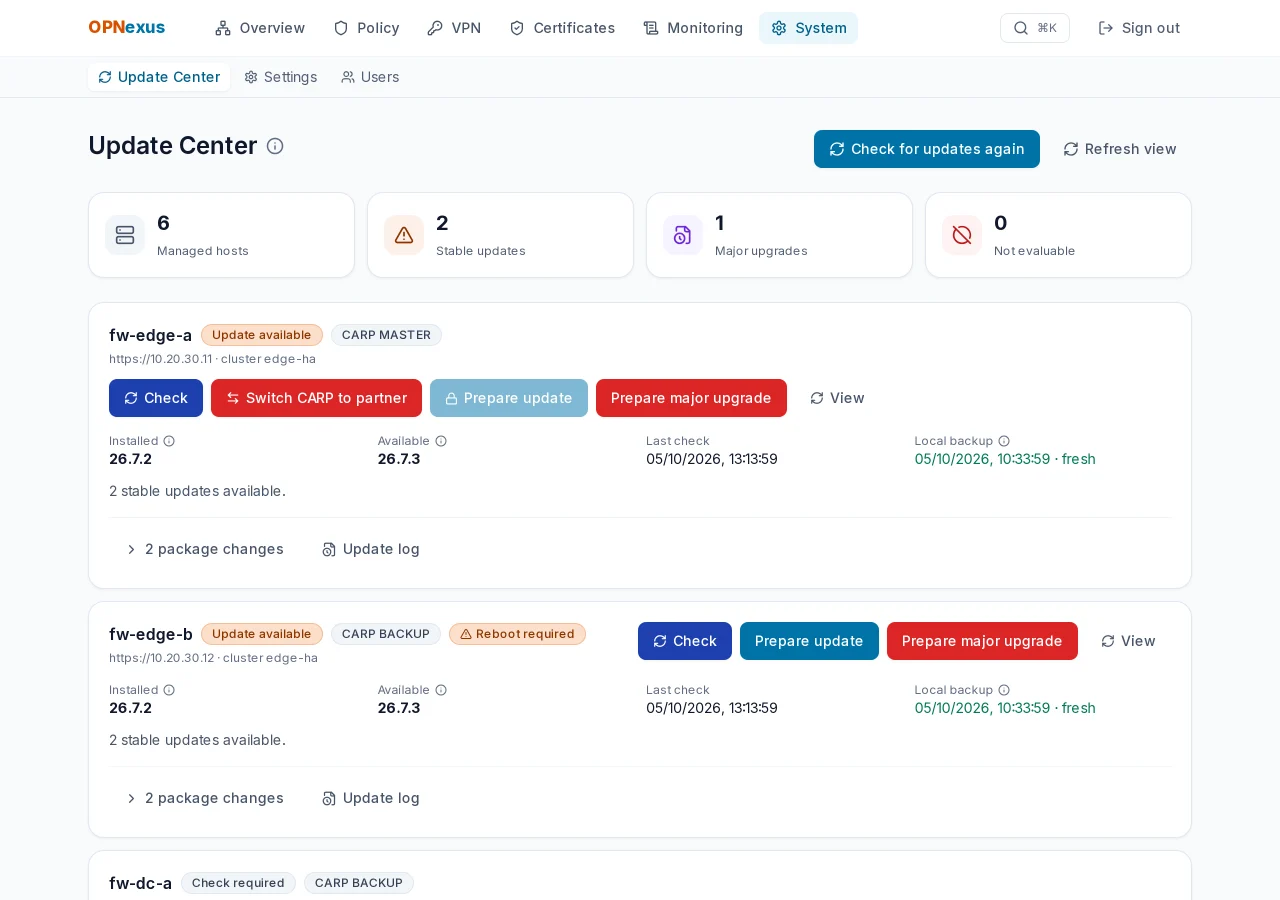

Update Center
Stable updates and major upgrades for the whole fleet, with reboot hints.
Guided HA flow
Update the BACKUP first, CARP switch-over with confirmation.
Backup check
A local configuration backup as a prerequisite; restore preview for saved backups.
Scheduled maintenance
Queue reboots and updates for a maintenance window.
No. OPNexus uses the OPNsense core REST API. The filter and alias API is available without an extra plugin. You store an API key per firewall.
What if a rule locks me out?
Every change is applied on probation. If you do not confirm within the time window (default: 3 minutes), OPNexus restores the previous state automatically. If that fails, the error stays visible and is reported.
Where is my data?
On your own server (Docker Compose with PostgreSQL). There is no cloud and no account with us. The version notice is off by default; if you enable it, at most one request every 12 hours goes to updates.opnexus.dev – with no instance or user data.
Who is OPNexus for?
Anyone who runs several OPNsense firewalls of their own – from a homelab to a mid-sized company. Multi-tenancy for service providers with many customers is deliberately not a goal.
Does OPNexus support high availability?
Yes. CARP pairs are shown as clusters, role changes are logged, and updates run in a guided flow that starts with the BACKUP.
What does OPNexus cost?
Nothing. Downloading, reading the source, adapting and using it – including commercially for your own firewalls – is free. Not allowed: reselling OPNexus or derivatives, or offering them as a competing product or service. Licence: PolyForm Shield 1.0.0 (source-available, not an open-source licence).
Is there any connection to OPNsense or Deciso?
No. OPNexus is an independent project and is not affiliated with Deciso B.V. or the OPNsense® project. OPNsense® is a trademark of Deciso B.V.
How do I update OPNexus?
With opnexus update: the tool pulls the new images, waits for “healthy” and rolls back automatically on problems; opnexus rollback also restores the database from the pre-upgrade backup. Ready-made release images arrive with the first public release.
Get started
Installation
OPNexus runs as a Docker Compose stack on your own server – your firewall data stays with you.
# Requires Docker with the Compose plugin
git clone https://git.opnexus.dev/opnexus/opnexus.git
cd OPNexus
cp .env.example .env # set POSTGRES_PASSWORD
docker compose up -d --build
The UI is then reachable locally at http://localhost:3100. For access from other machines and production use with TLS, the handbook (in German) describes the bundled HTTPS proxy.
Ready-made release images including opnexus update and opnexus rollback are prepared and arrive with the first public release.
Good to know
Self-hosted. No cloud, no account with us.
Version notice on request only. Off by default; otherwise at most one request every 12 hours to updates.opnexus.dev.
Source available. Free to use under the PolyForm Shield License 1.0.0 – only reselling and competing products are excluded.
Developed against real OPNsense instances and backed by an extensive test suite.
